This article will help you to integrate xorlab Security Platform with your on-premise Microsoft Exchange 2016 or 2019 environment to filter email traffic. In this inline mode, all incoming emails are routed through XSP, which will forward legitimate emails to the Exchange server. Illegitimate emails are dropped. All outgoing emails will be forwarded (by the Exchange server) to XSP which will deliver legitimate emails to the Internet or any other destination. Integrating XSP as a filter requires the following configuration changes to be performed on the Exchange server:
  • For incoming emails, you must extend the receive connectors to accept emails from xorlab Security Platform.
  • For outgoing emails, you must add a new send connector pointing to xorlab Security Platform.

​
Setting up the receive connector

To extend the default receive connector to accept emails from XSP:
  1. Open Exchange Admin Center.
  2. Under Mail Flow → receive connectors, select your Exchange server and edit the connector starting with Default Frontend….

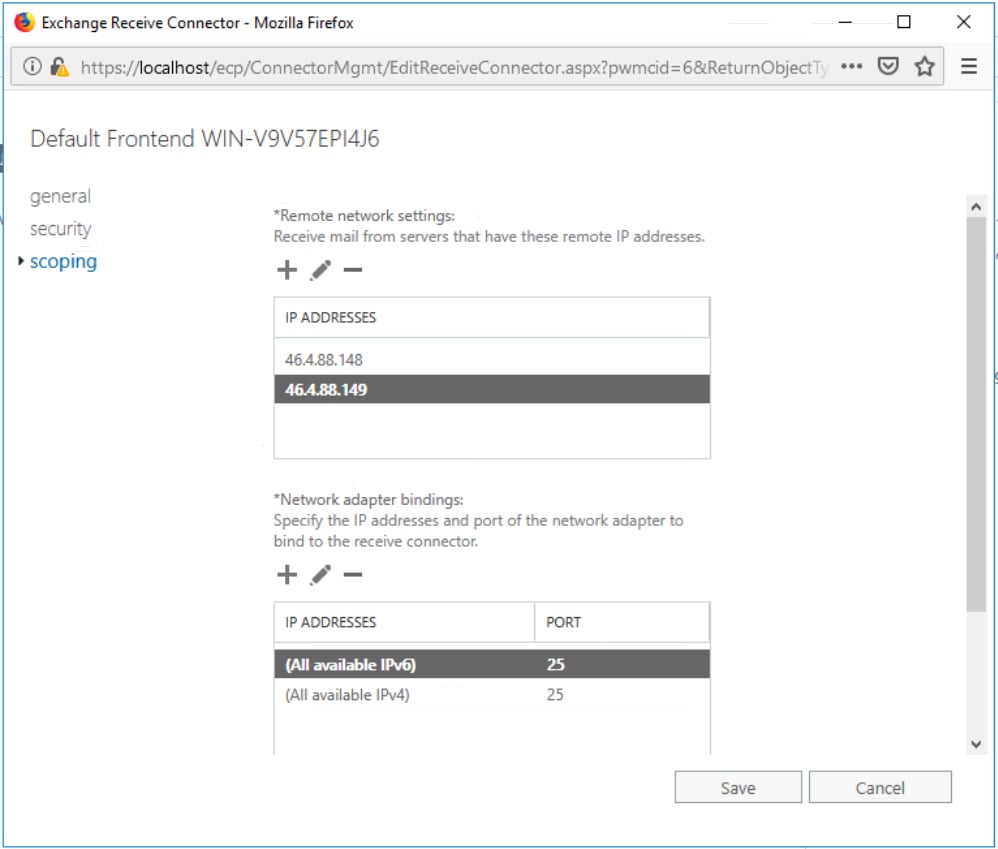

  3. In the dialog, go to Scoping and, for each xorlab MTA in your setup, add its IP address as a new entry to Remote network settings. Scope of IP addresses
  4. Click Save.

​
Adding a new send connector

To route all outgoing emails through xorlab Security Platform:
  1. Go to Exchange Admin Center.
  2. Under Mail Flow → send connectors, add a new connector.

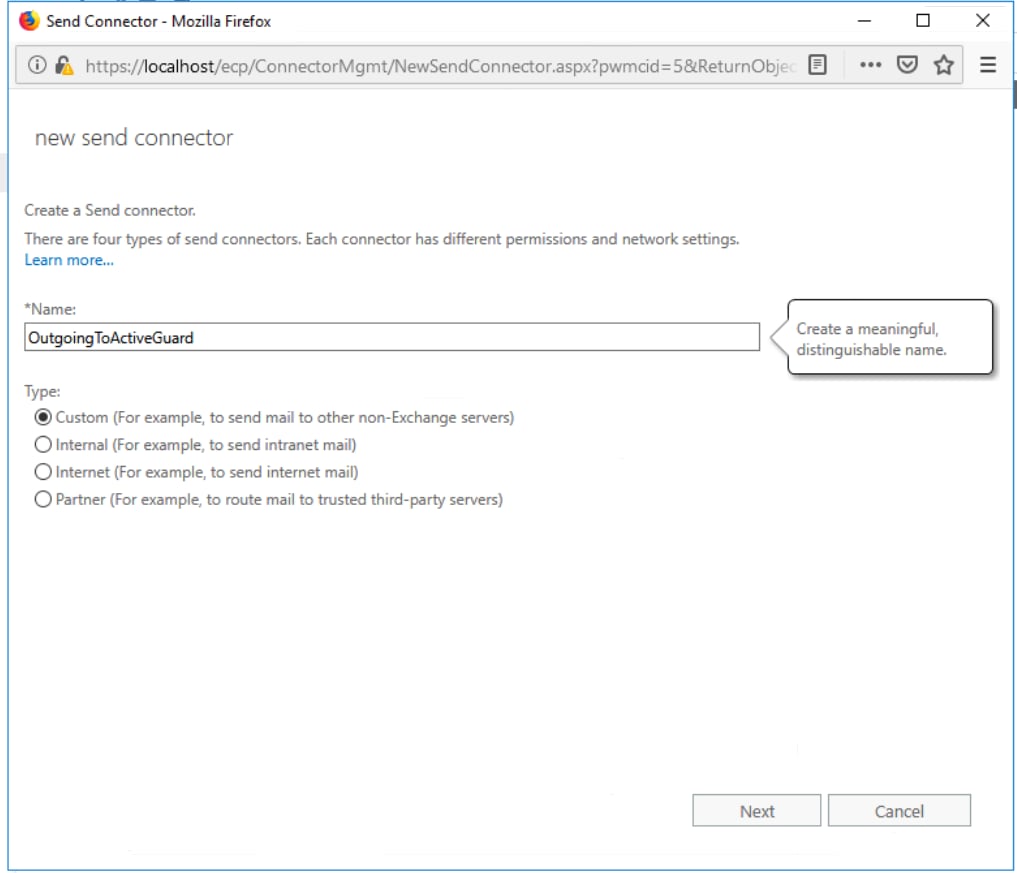

  3. Enter a name and choose Custom. Custom send connector
  4. Click Next.

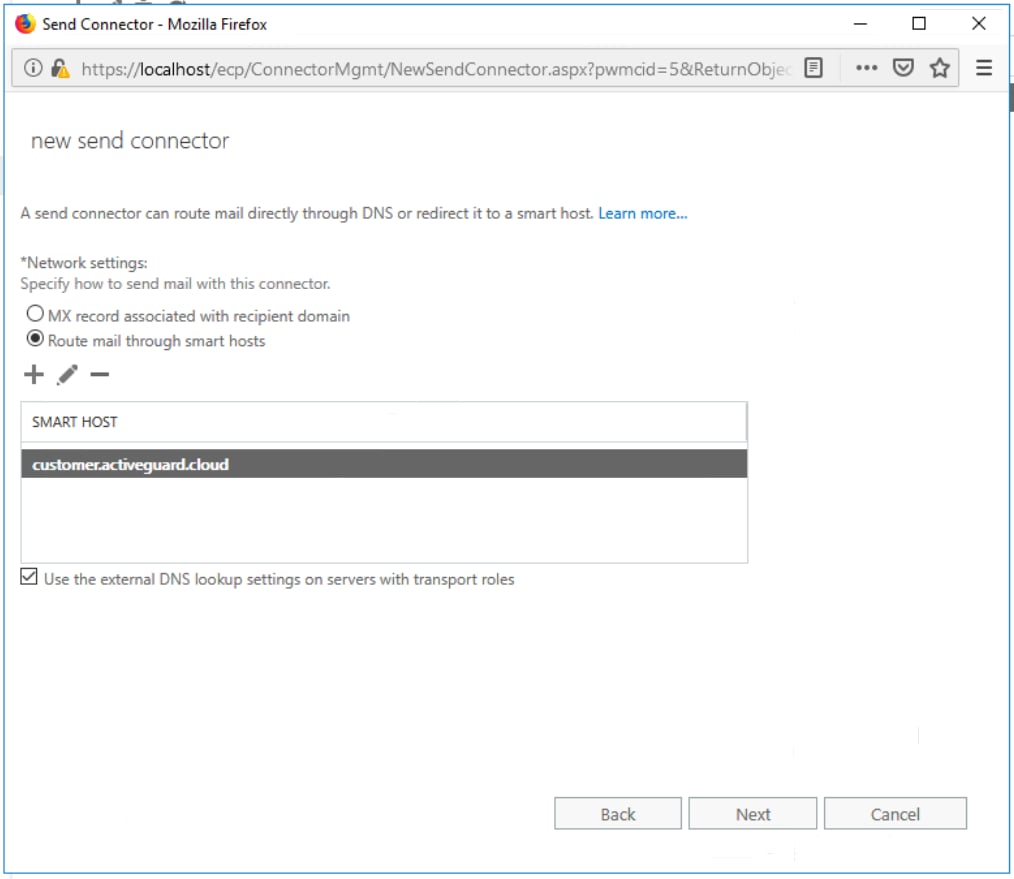

  5. Choose the Route email through smart hosts option and add the domain names of all xorlab MTAs in your setup (the domain names—with DNS A records—corresponding to the IPs that you configured in Setting up the receive connector) as smart hosts.
  6. Tick the checkbox to use external DNS lookup settings. Smart hosts for send connector
  7. Click Next.
  8. Leave the smart host authentication to None. TLS between XSP and the Exchange server is enforced by XSP (for incoming and outgoing emails).
  9. Click Next.

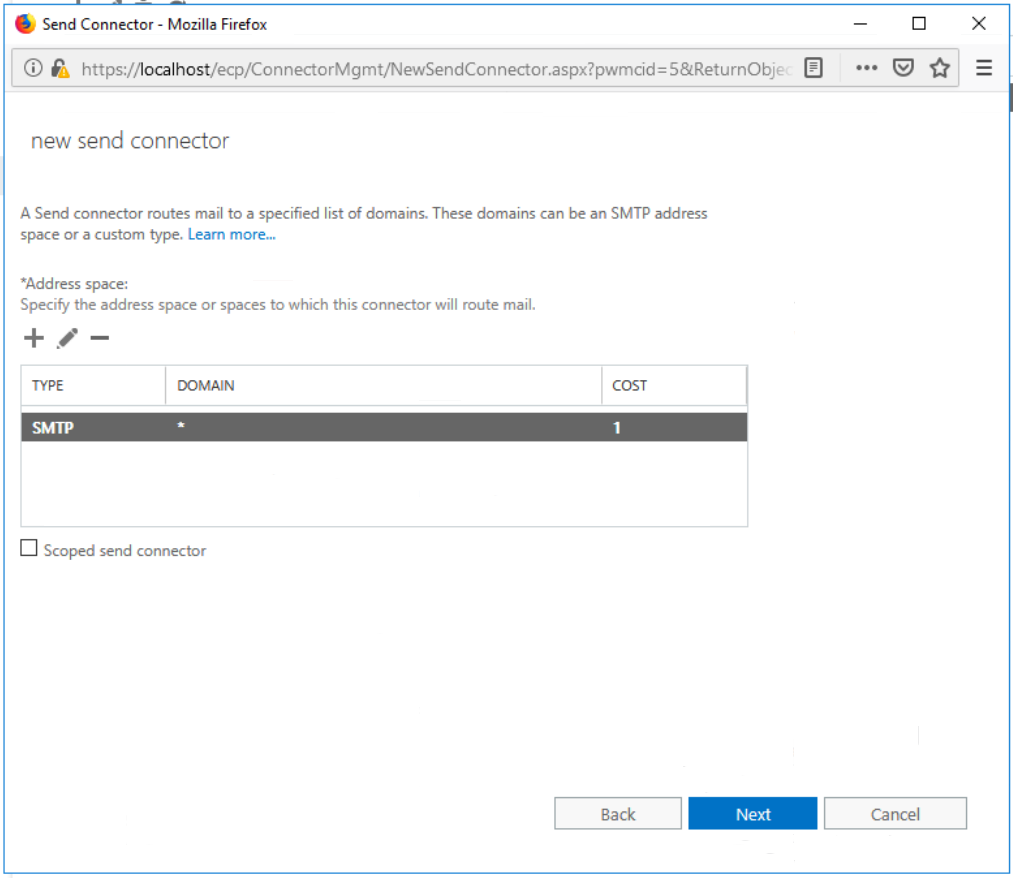

  10. Under Address space, add a new space and enter * as a domain. Click Next. Address space for email routing
  11. Add your Exchange server as a source. Click Finish.
