You can use xorlab to directly filter emails by integrating it inline into the mail flow of Microsoft 365 (M365).
PrerequisitesTo integrate xorlab into your Microsoft 365 environment, you will need:
  1. Access to the Microsoft 365 (M365) admin center.
  2. The domain of your xorlab instance.
xorlab is integrated into Microsoft 365 by using mail flow connectors. For this integration, no changes are required to your MX records, they still point to Microsoft 365. Microsoft 365 will continue to receive and deliver emails from and to the Internet, while xorlab will filter malicious emails. Incoming emails are accepted by Microsoft 365, sent to xorlab for analysis, and then sent back to Microsoft 365 for final delivery into the mailbox. Outgoing emails are also first sent to xorlab, analyzed, and then delivered by Microsoft 365. xorlab integration through M365 connectors xorlab integration through M365 connectors This integration is split into two parts: mail flow integration, which ensures that emails are routed via xorlab, and further steps, which ensure that emails sent back from xorlab after analysis are accepted by M365. Mail flow integration
  1. Adding accepted domains in M365.
  2. Setting up a connector that allows xorlab to send emails to Microsoft 365.
  3. Setting up a connector that routes all emails to xorlab for analysis before delivery.
  4. Creating a mail flow rule for the second connector.
Ensuring an uninterrupted mail flow in M365 (optional)
  1. Adding xorlab to your SPF record.
  2. Bypassing spam filtering in M365.
  3. xorlab anti-spam whitelisting in M365 Defender.
The communication between xorlab and Microsoft 365 is always TLS encrypted and enforced by both sides.

​
Mail flow integration

​
Adding accepted domains

Adding the domain of your xorlab MTAs as an “accepted domain” for your organization is mandatory.

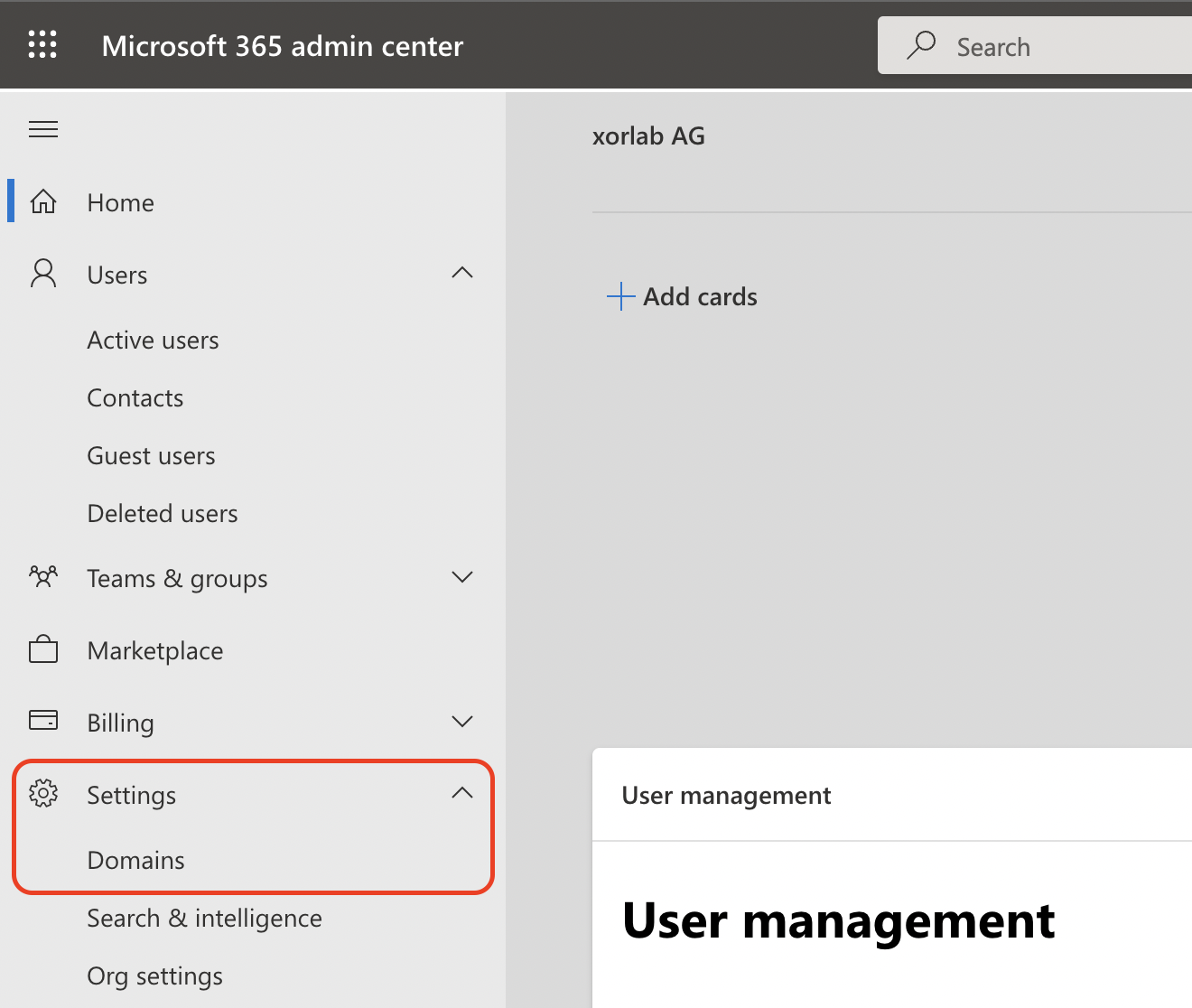

  1. On the Home screen of the Microsoft 365 Admin Center click Settings in the left pane and in the expanded list of items click Domains: Domains management Domains management

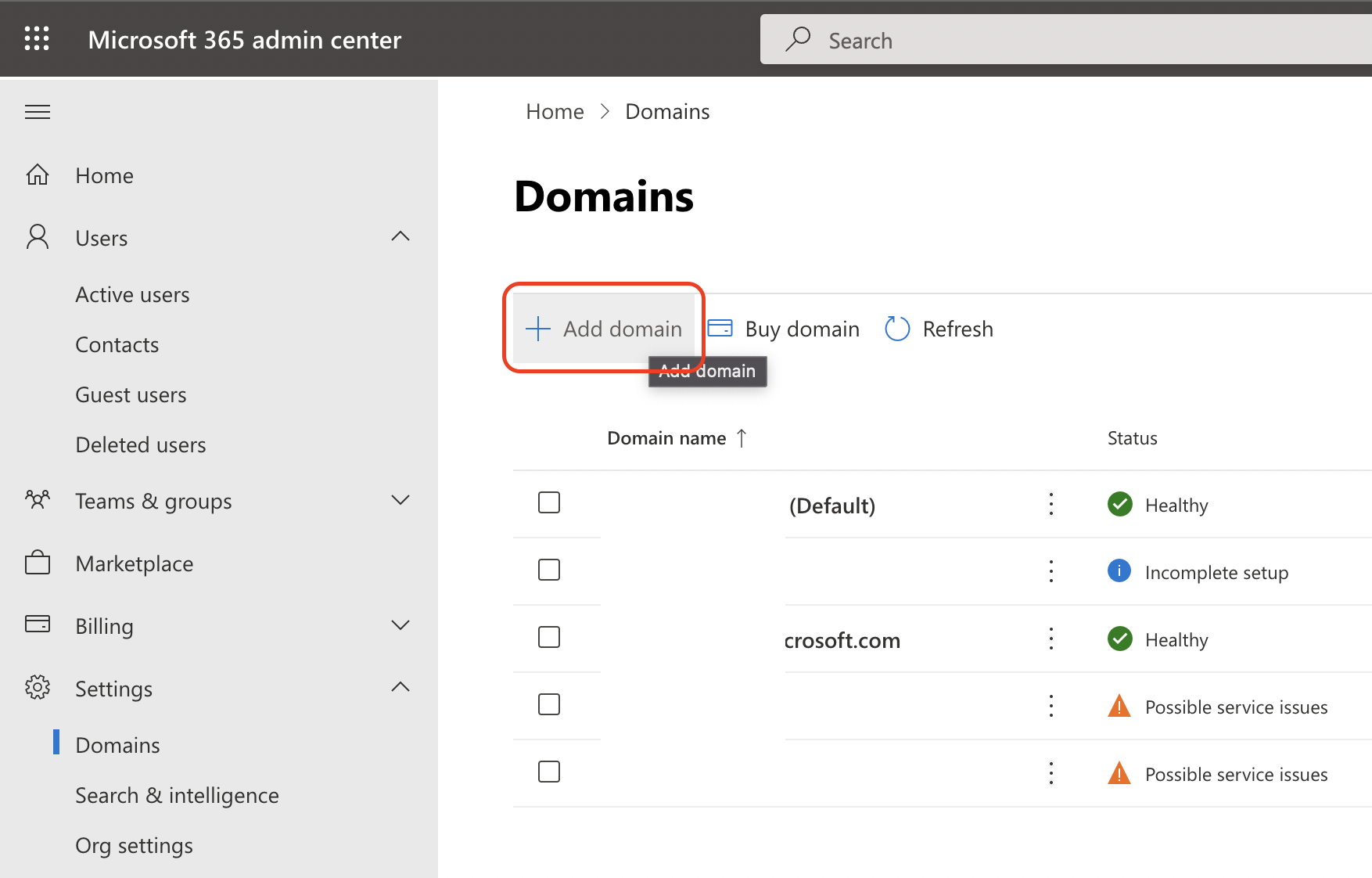

  2. Click Add domain on the Domains page: add-domain Adding a domain

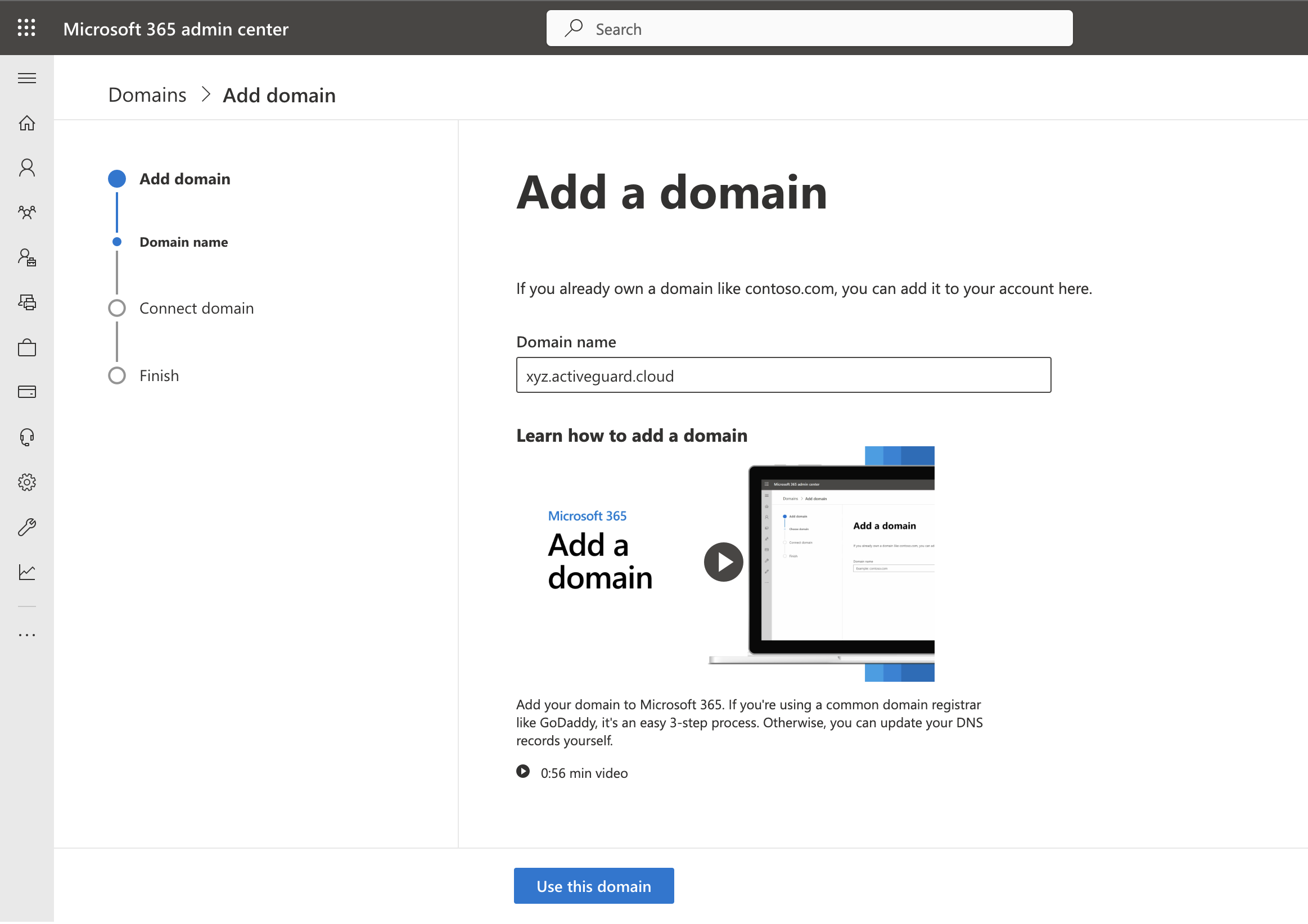

  3. On the next Add a domain screen, enter the domain of your xorlab instance, e.g. xyz.activeguard.cloud, and click Use this domain: Add a domain name Adding a domain name

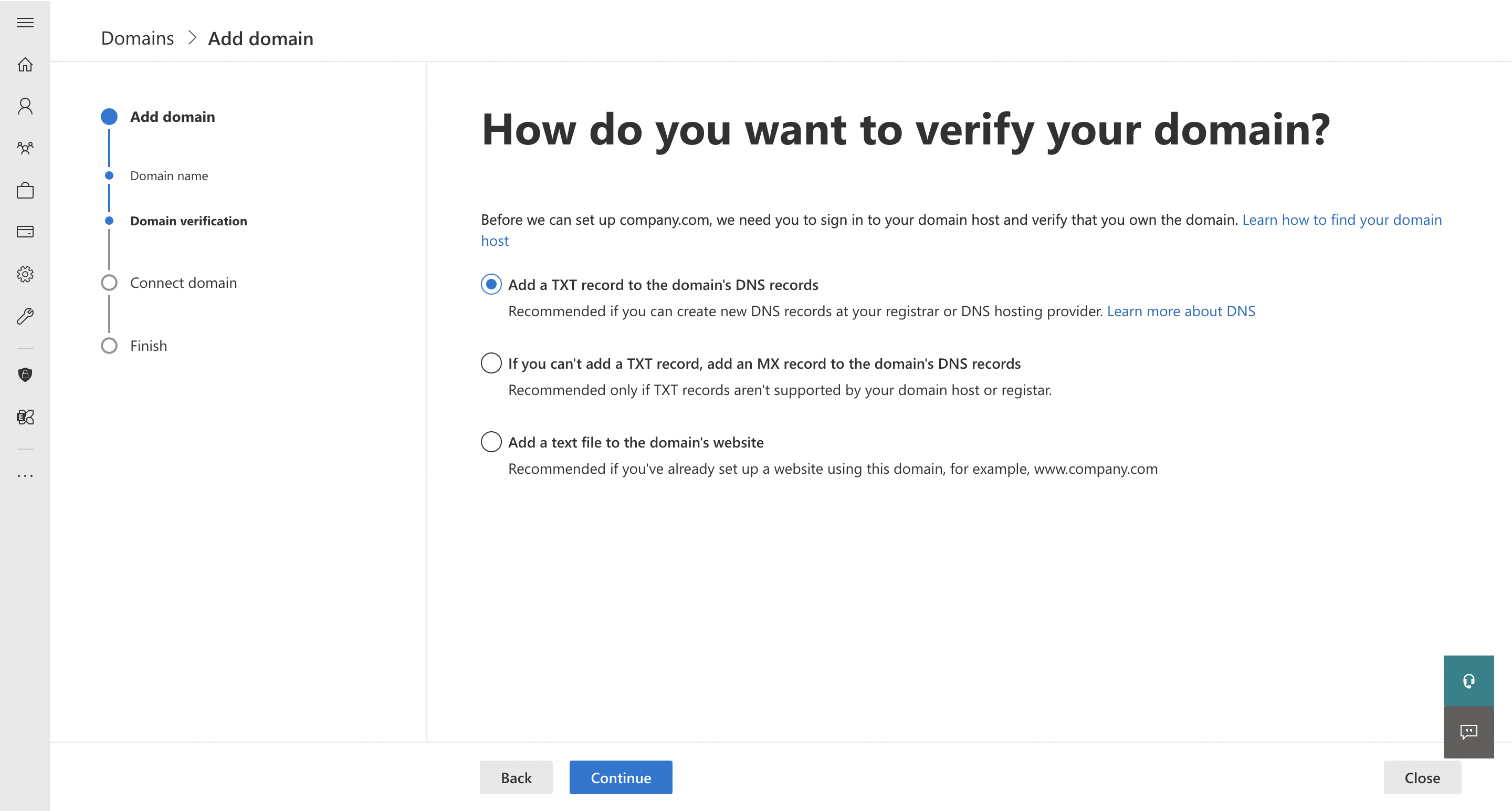

  4. Select the first option Add a text record… on the How do you want to verify your domain? page and click Continue: Domain verification method Selecting the domain verification method

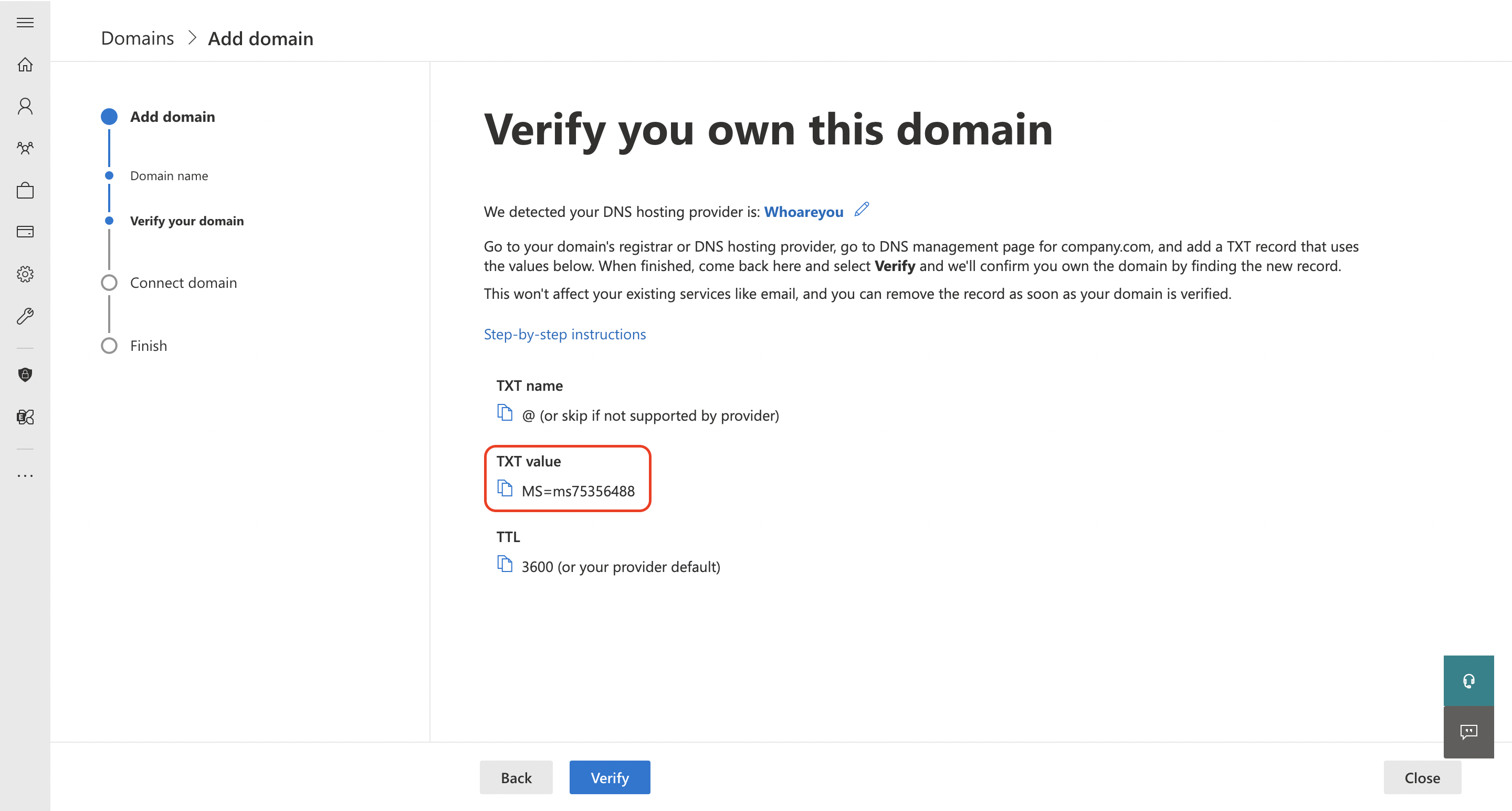

  5. Send the TXT value to support@xorlab.com so that we can add it to the DNS record of your xorlab MTAs. After this has been done, click Verify: Domain verification data Data for domain verification

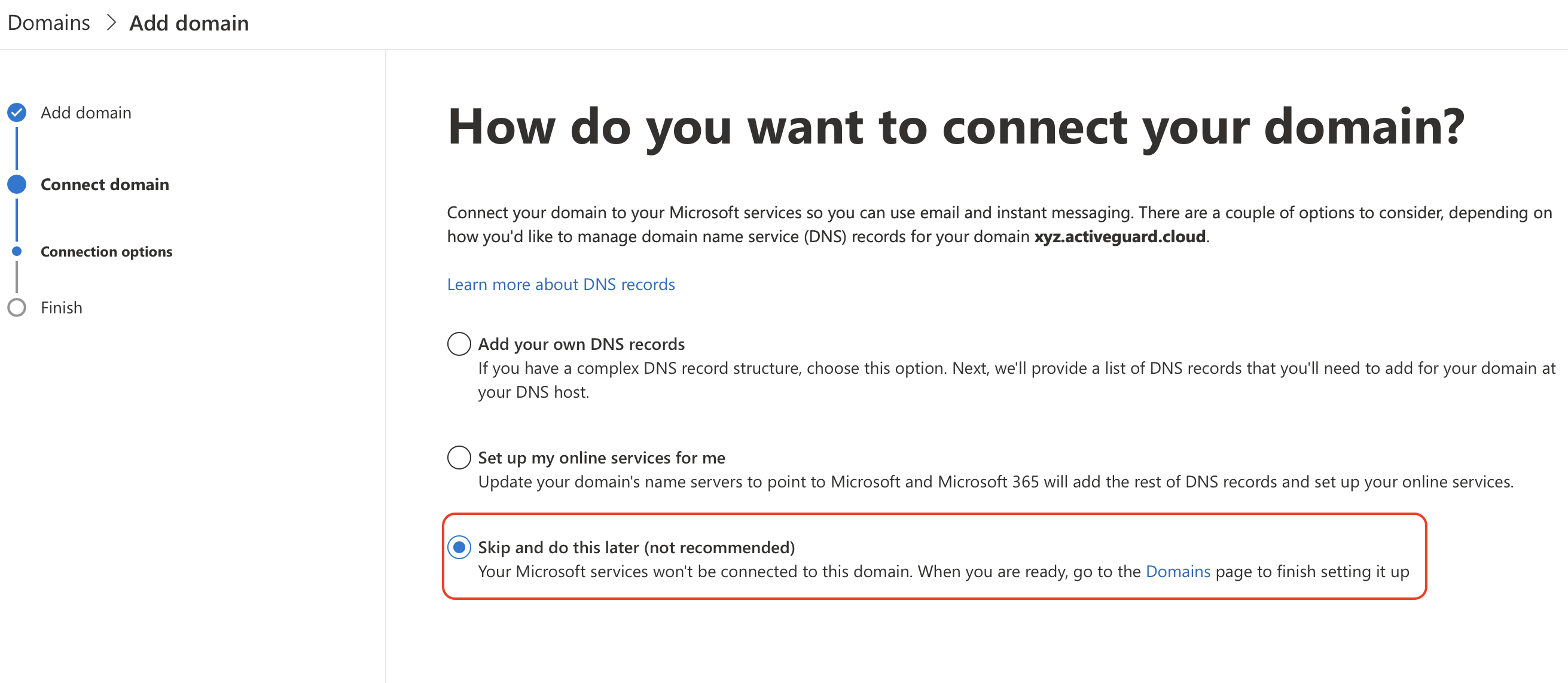

  6. After a successful verification, a new page is displayed asking you how do you want to connect your domain. You can click More options and select Skip and do this later. Domain skip and do this later

​
xorlab to M365 connector

This connector makes sure that Microsoft 365 will accept emails from xorlab.

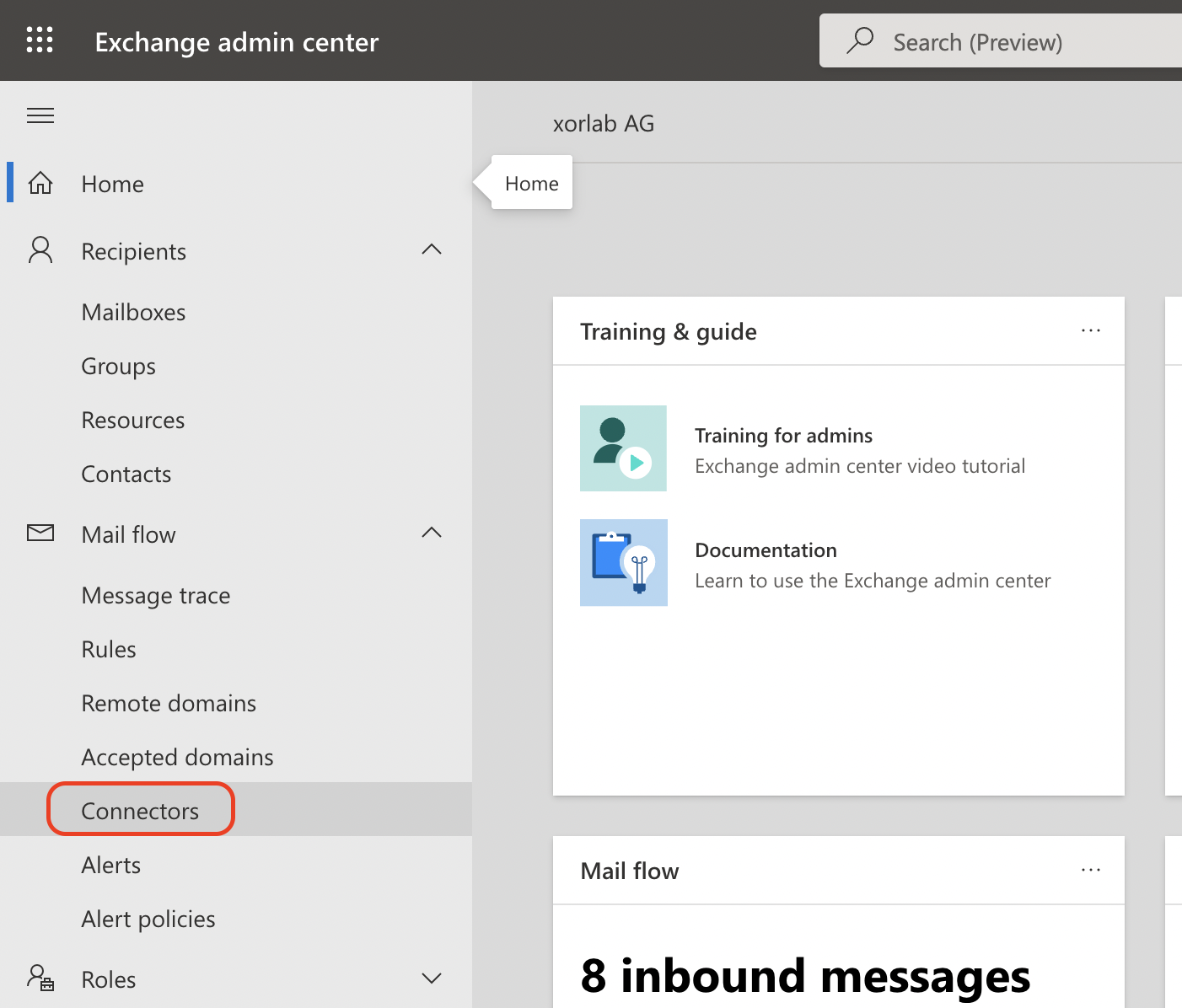

  1. On the Home screen of the Exchange admin center click Mail flow in the left pane and in the expanded list of items click Connectors: Mail flow connectors

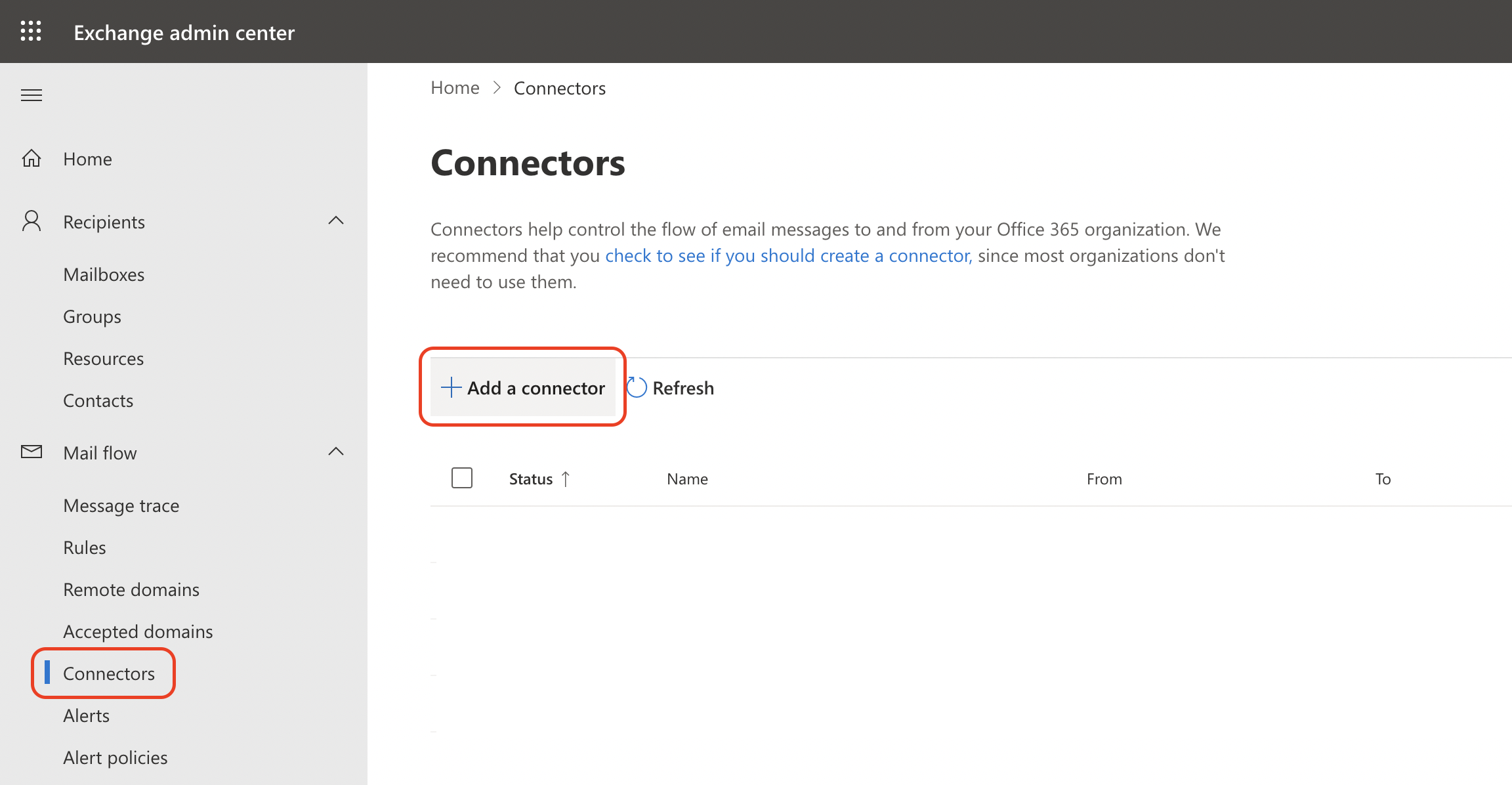

  2. On the Connectors page, click Add a connector. Add a connector Adding a connector

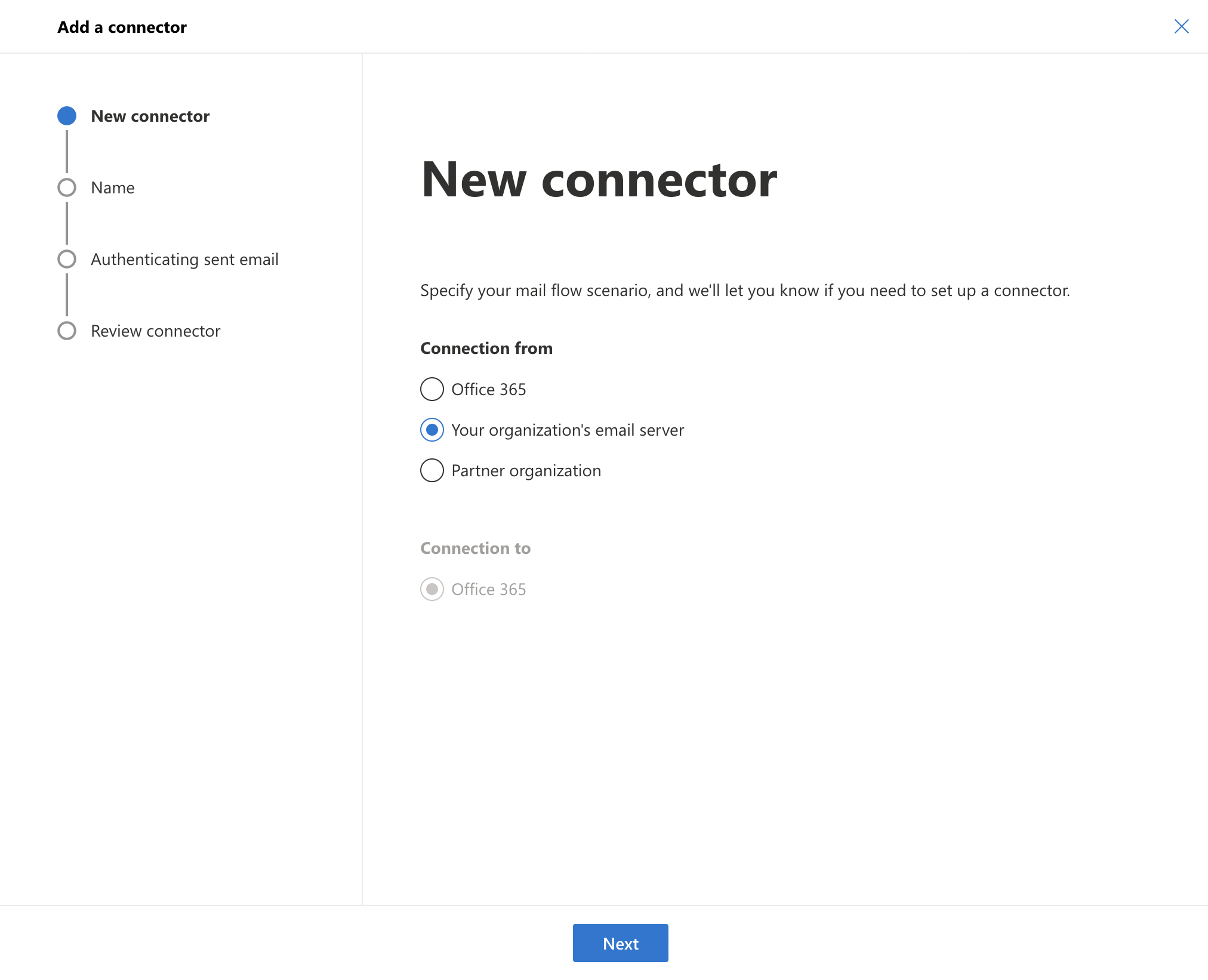

  3. On the New Connector screen choose Your organization’s email server as a Connection from. Office 365 should be automatically selected as a Connection to. Click Next. New connector Selecting mail flow scenario

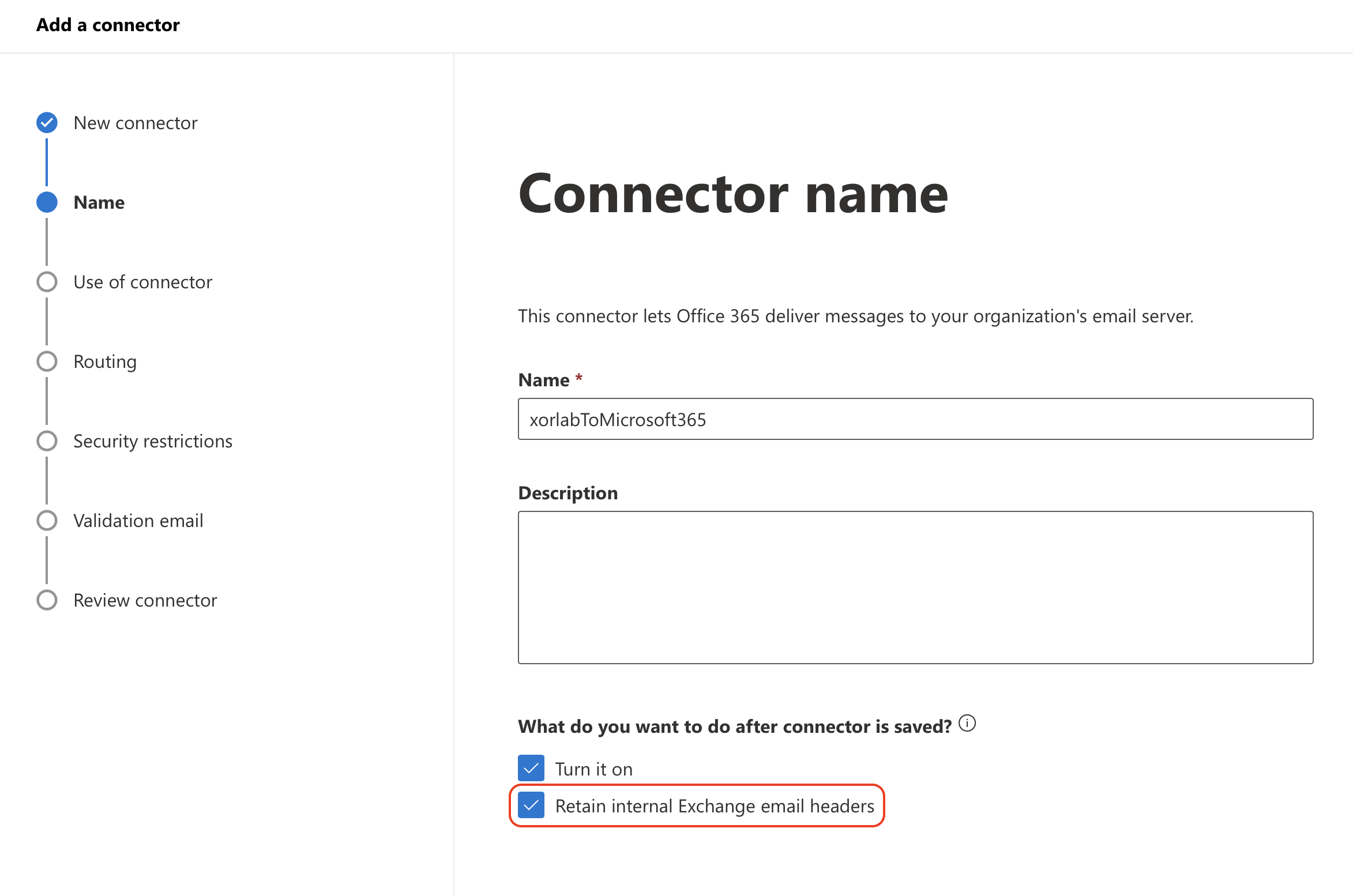

  4. Set the name of the connector to xorlabToMicrosoft365 on the Connector name screen, tick Retain Internal Echange emails headers and click Next: Connector name Setting the connector name

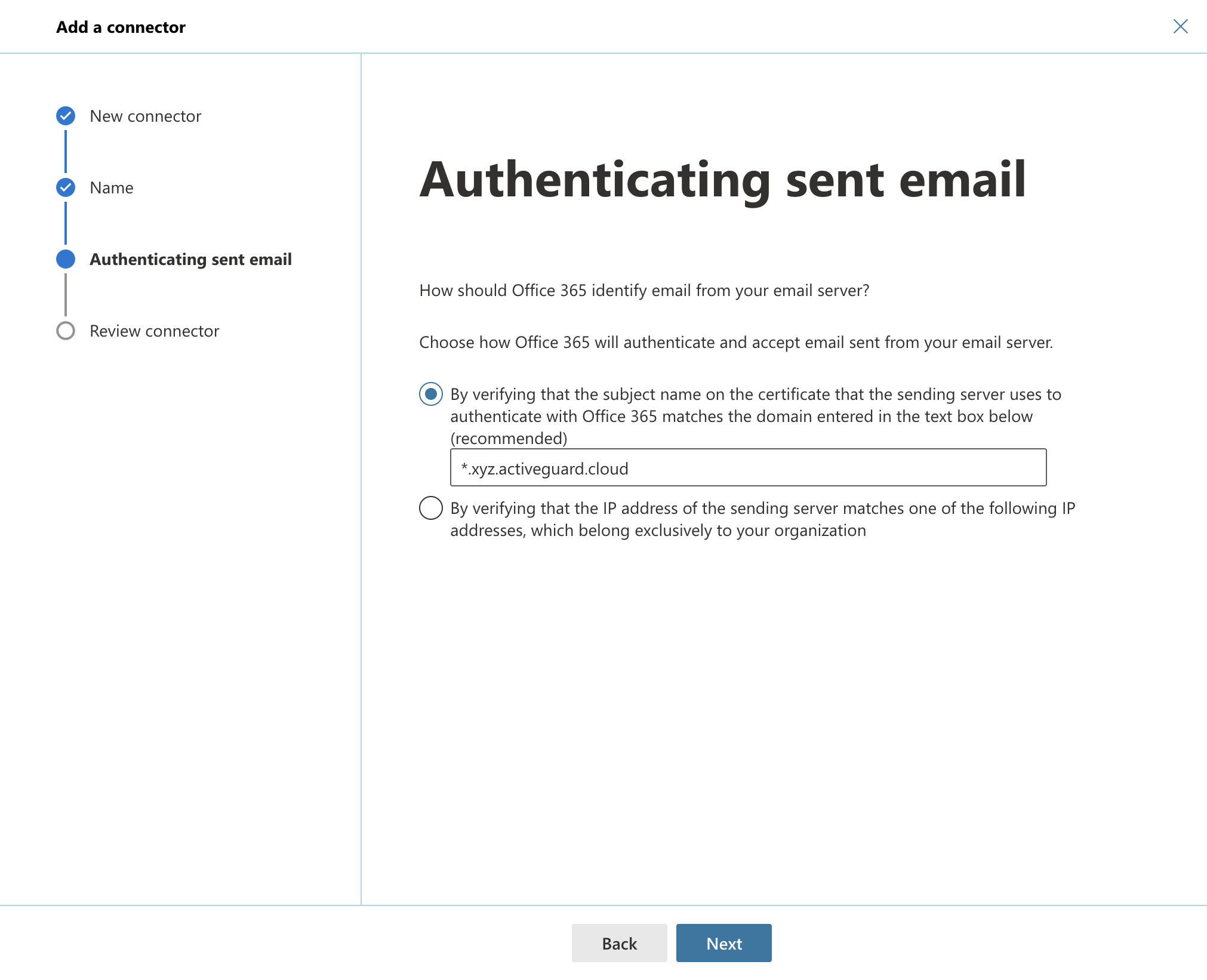

  5. On the Authenticating sent email page, leave the default first option By verifying that the subject name… selected and add the domain names of your MTAs. When you’re done, click Next: Authenticating sent email Authenticating sent email
  6. Review the connector on the next page and when everything’s OK, click Create connector and then Add another connector.

​
M365 to xorlab connector

This connector makes sure that all emails are routed through xorlab.
  1. If you are continuing adding connectors, you should see the New connector page. If not, please follow the steps #1-3 from the previous section.

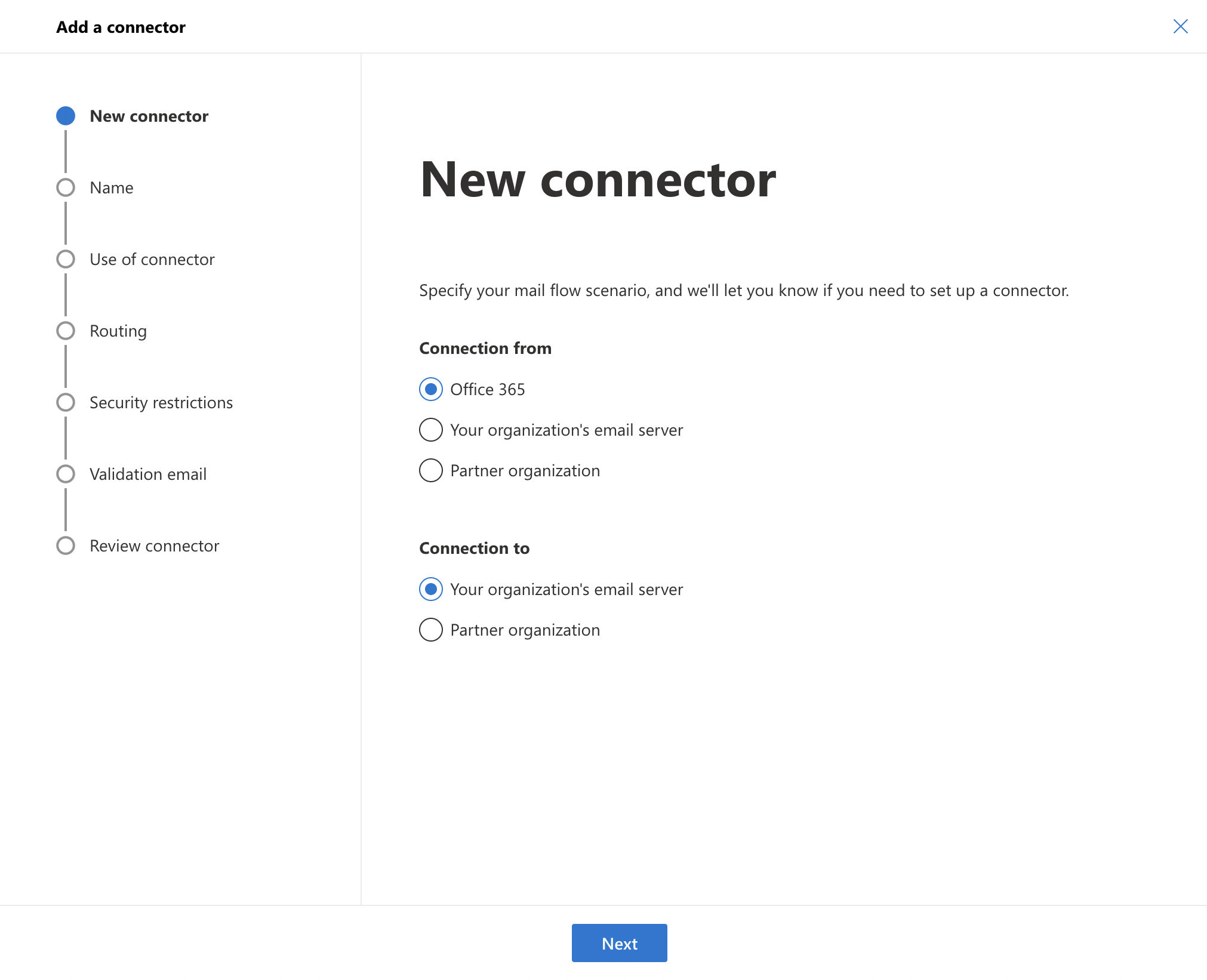

  2. Select Office 365 under Connection from and Your organization’s email server under Connection to and click Next: New connector from M365 Adding a new connector from M365

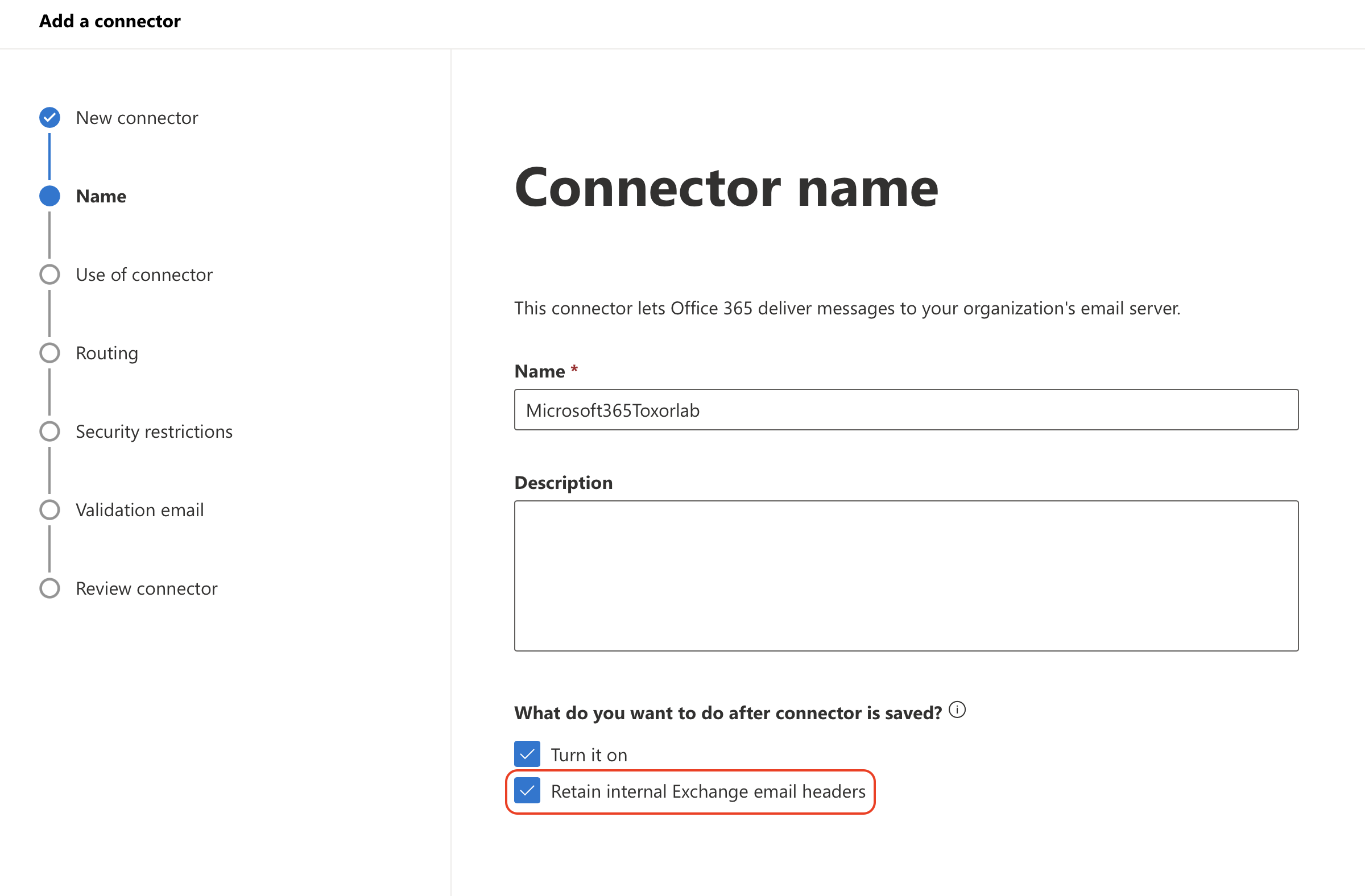

  3. Set the name of the connector to Microsoft365Toxorlab on the Connector name screen, tick Retain Internal Echange emails headers and click Next: Connector name from M365 Setting the connector name

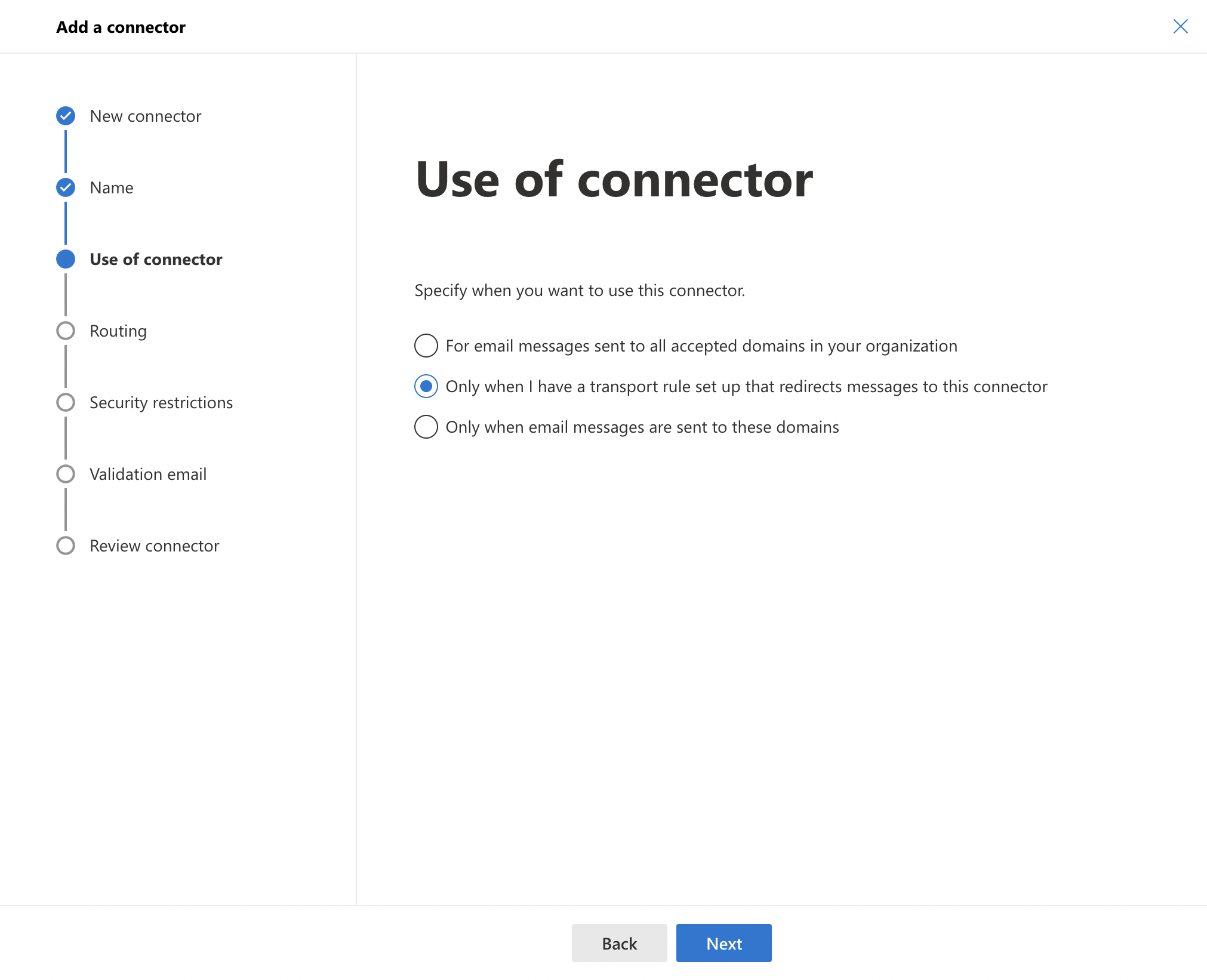

  4. On the Use of connector page, choose the first option Only when I have a transport rule set up… and click Next: Use of connector Defining the use of connector

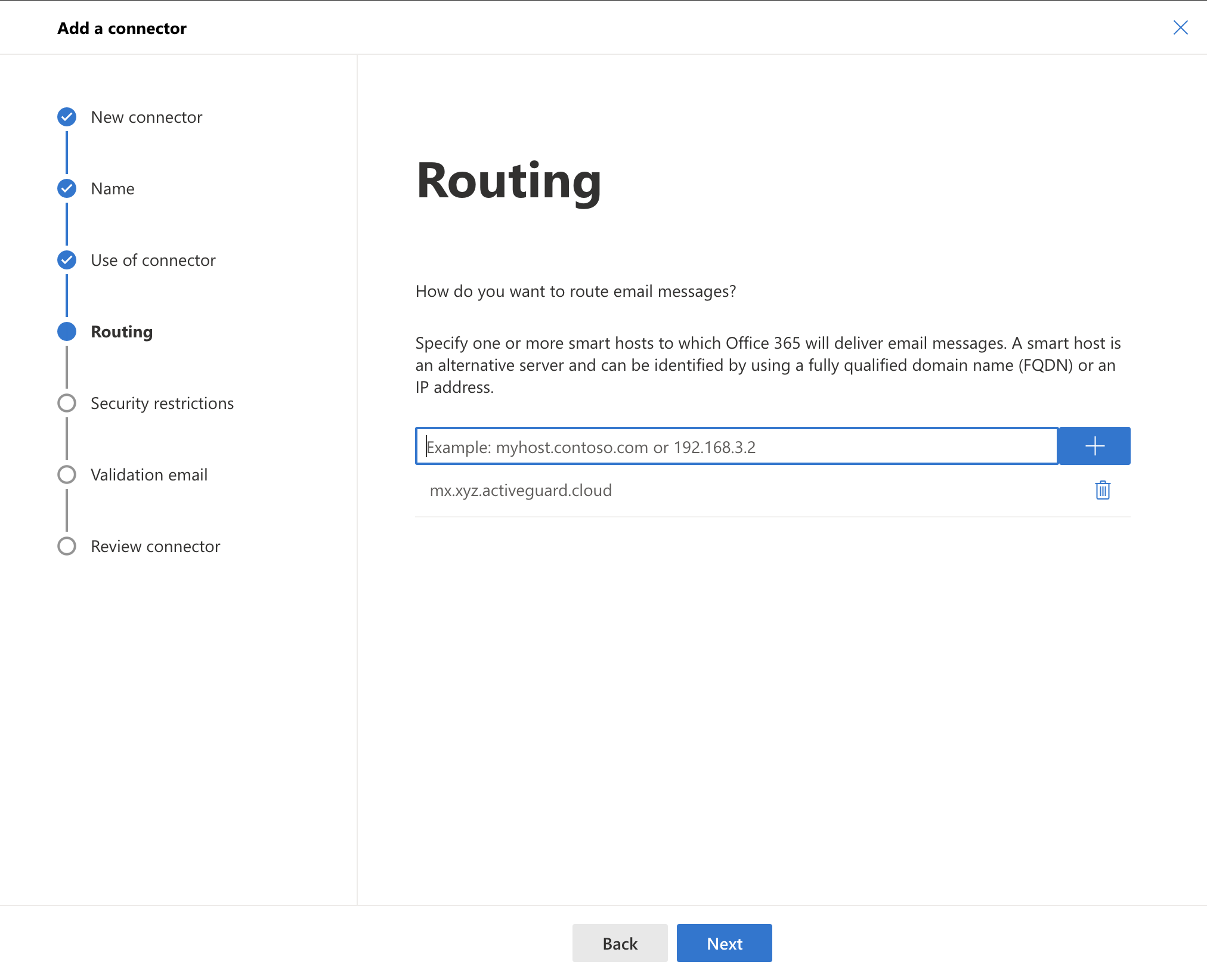

  5. Add a new smart host with the domain that resolves to the xorlab MTAs on the Routing screen by entering them and clicking the plus (+) button. If your customer ID for your xorlab instances is xyz you should add mx.xyz.activeguard.cloud. When you’re done, click Next: Routing Selecting the host for delivered messages

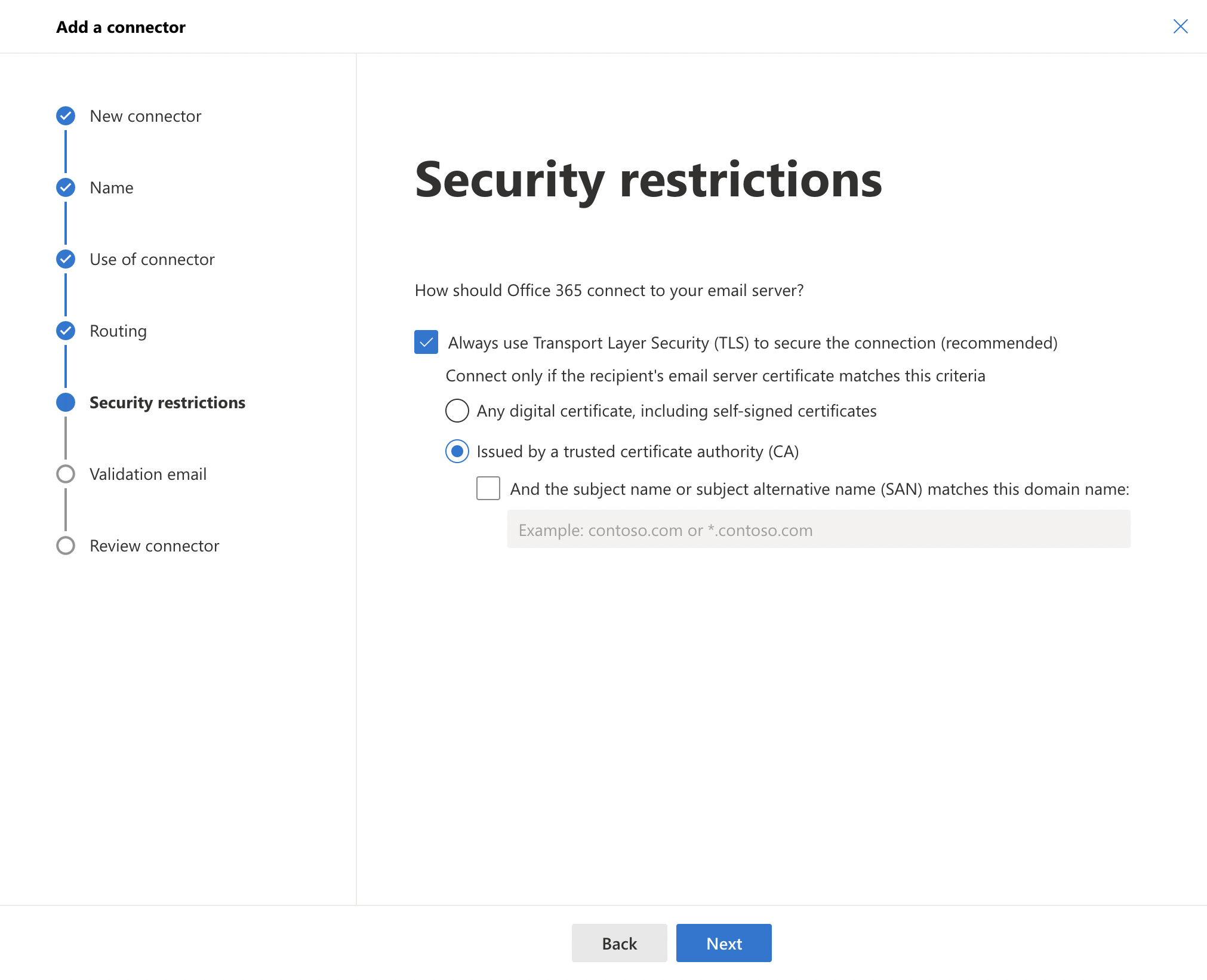

  6. On the Security restrictions page, activate the Always use Transport Layer Security… option and select Issued by a trusted certificate authority (CA). Click Next: Security restrictions Security restrictions

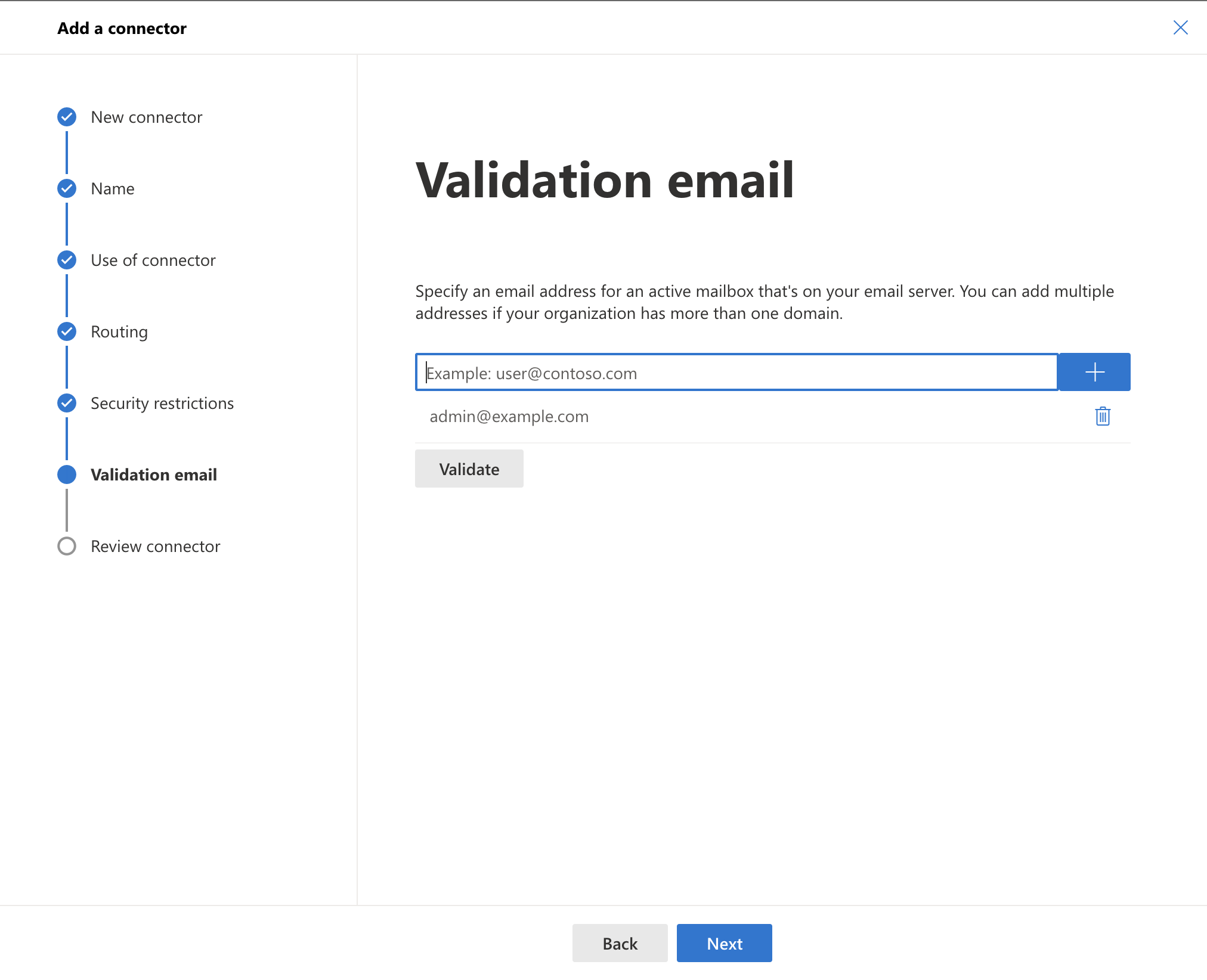

  7. Enter an email address in your connected mailbox where a validation email should be sent on the Validation email screen, click Validate and, after validation, click Next: Validation email Providing the validation email address
    Unsuccessful validationThe connector validation might fail at this point. If this happens, save the connector without validation, create the mail flow rule from the next section and then validate the connector again.
  8. Review the connector and click Create when it’s OK.

​
Mail flow rule

The M365-to-xorlab connector routes all emails to xorlab. In order to make sure that emails coming from xorlab are not sent again to xorlab, the M365-to-xorlab connector is only activated through a mail flow rule.

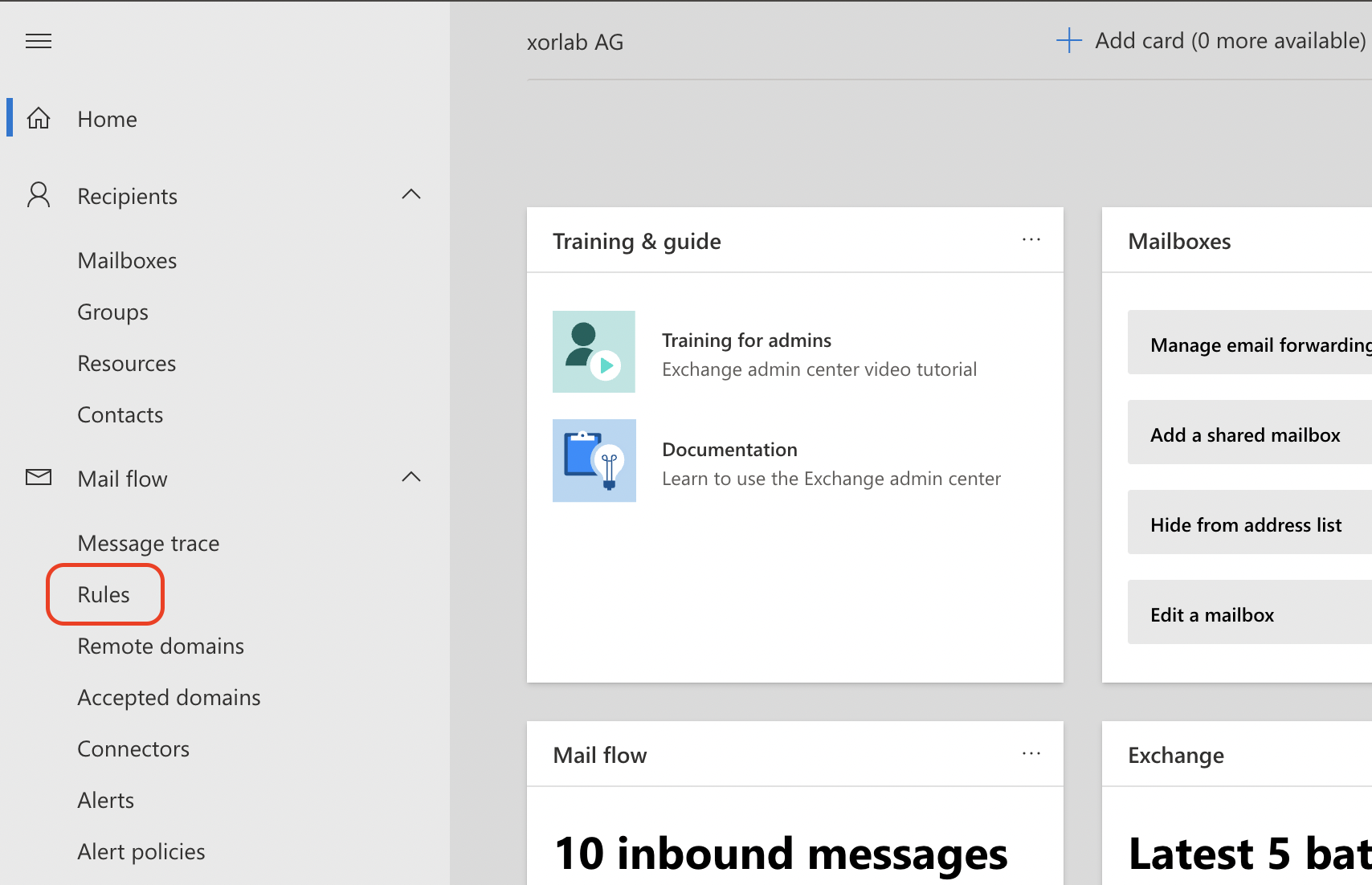

  1. On the Home screen of the Exchange admin center, click Mail flow in the left pane and in the expanded list of items click Rules: Mail flow rules Selecting mail flow rules

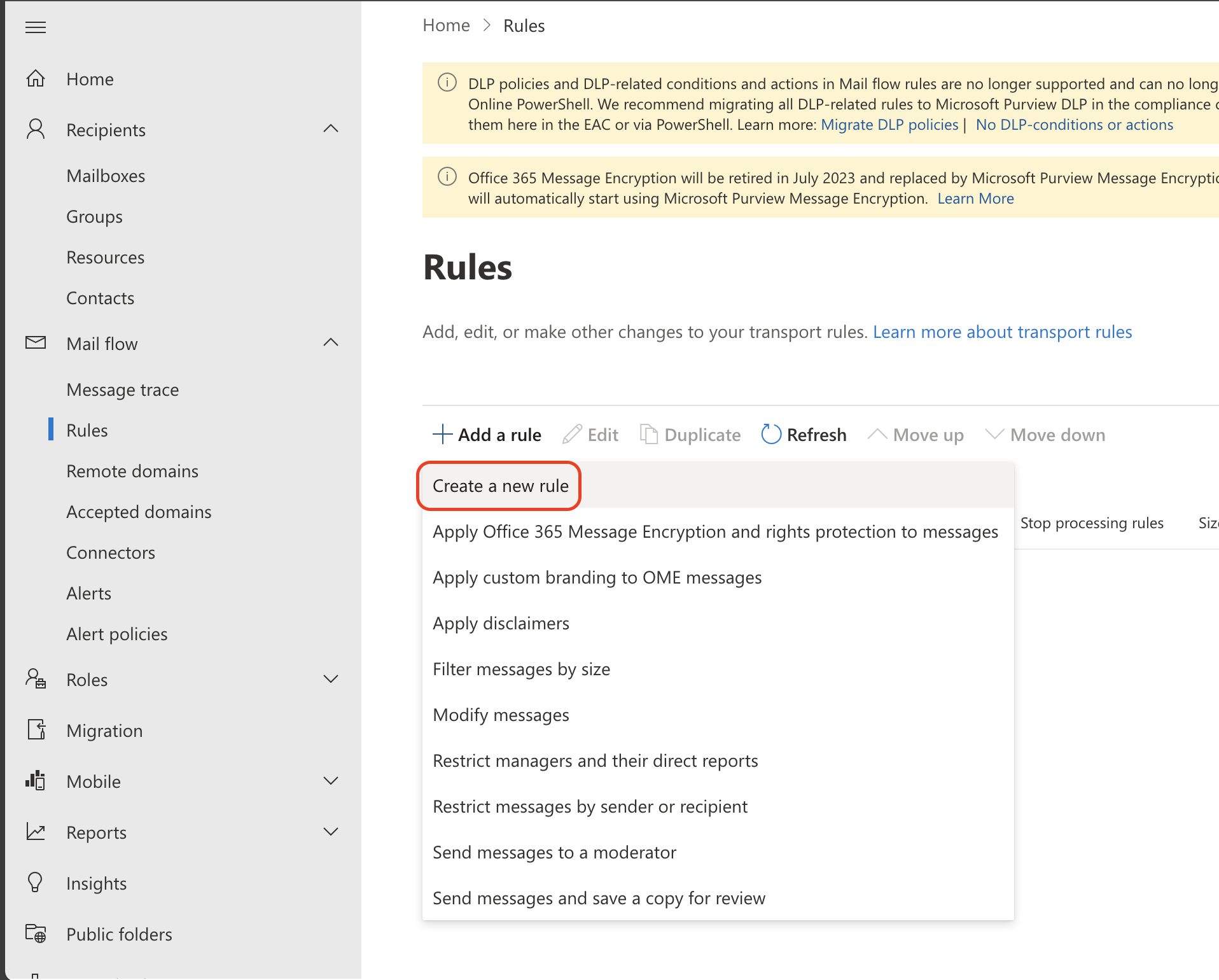

  2. On the Rules screen that appears, click Add a rule and select Create a new rule from the drop-down list: Create a new rule Creating a new rule
  3. A new pane opens with input fields for setting new rule conditions. Create a rule for incoming emails with the following settings:
    • Enter IncomingToxorlab in the field under Name.
    • Click the drop-down list under Apply this rule if to expand it and choose The sender, then click the Select one drop-down list on the right to expand it and select is external/internal, and finally choose Outside the organization from the select sender location list.
    • Click the plus icon (+) at the end of condition lists for Apply this rule if to add another condition. Click the drop-down list under the new And condition to expand it and choose The recipient, then click the Select one drop-down list on the right to expand it and select is external/internal, and finally choose Inside the organization from the select recipient location list.
    • Click the drop-down list under Do the following to expand it, select Redirect the message to, then click the Select one drop-down list on the right to expand it and select the following connector, and finally choose Microsoft365Toxorlab from the list of available connectors.
    • Click the drop-down list under Except if, choose The sender, then click the Select one drop-down list on the right to expand it and select IP address is in any of these ranges or exactly matches, and in the resulting specify IP address ranges pane add the IPs of the xorlab MTAs.

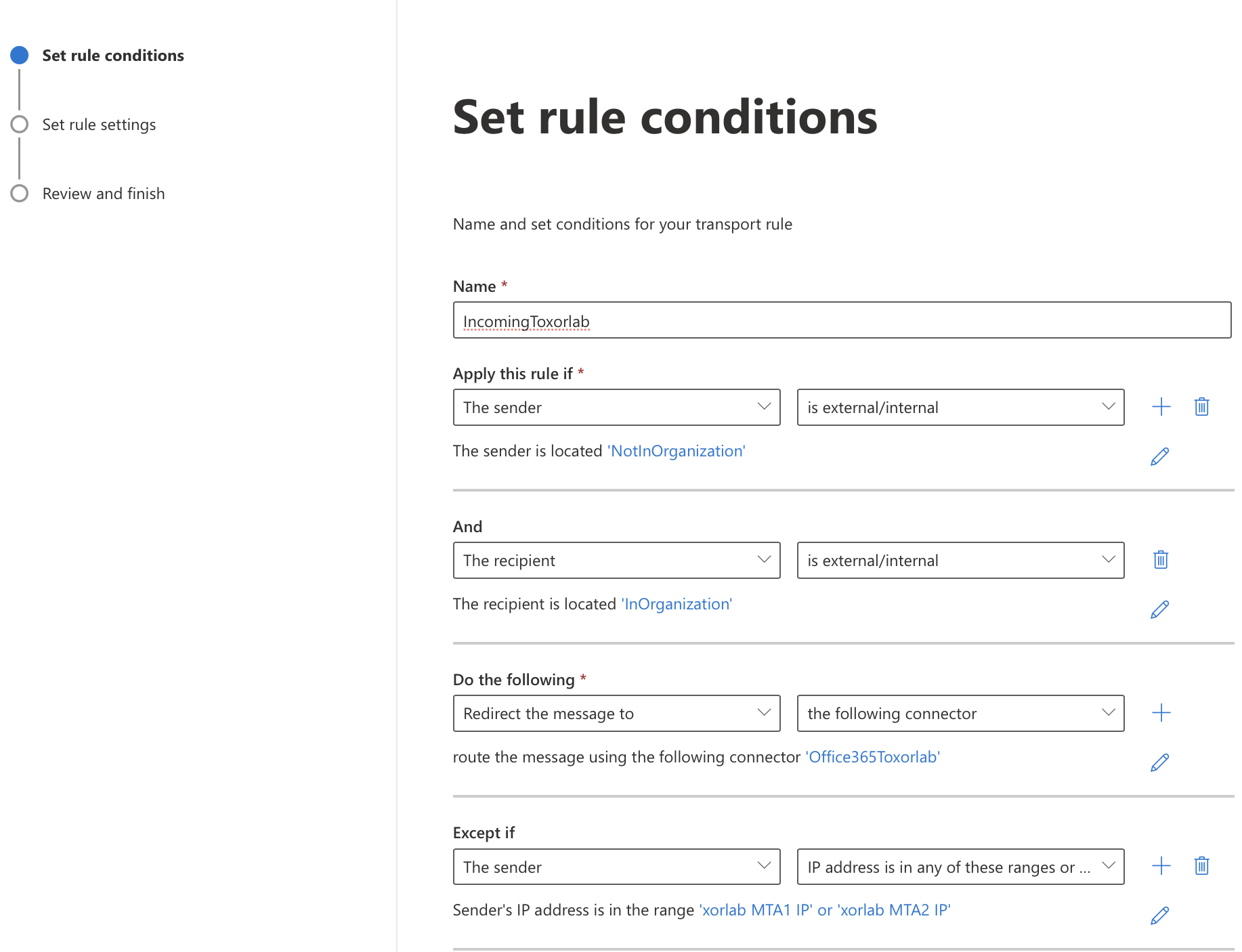

    The resulting rule conditions should look like depicted on the screenshot below: New rule Configuring a new incoming rule
  4. Click Next.
  5. On the next Set rule settings page, leave all settings at their defaults. Click Next.
  6. Review the settings for your rule on the last page and if they are OK, click Finish, then Done when the transport rule is created.

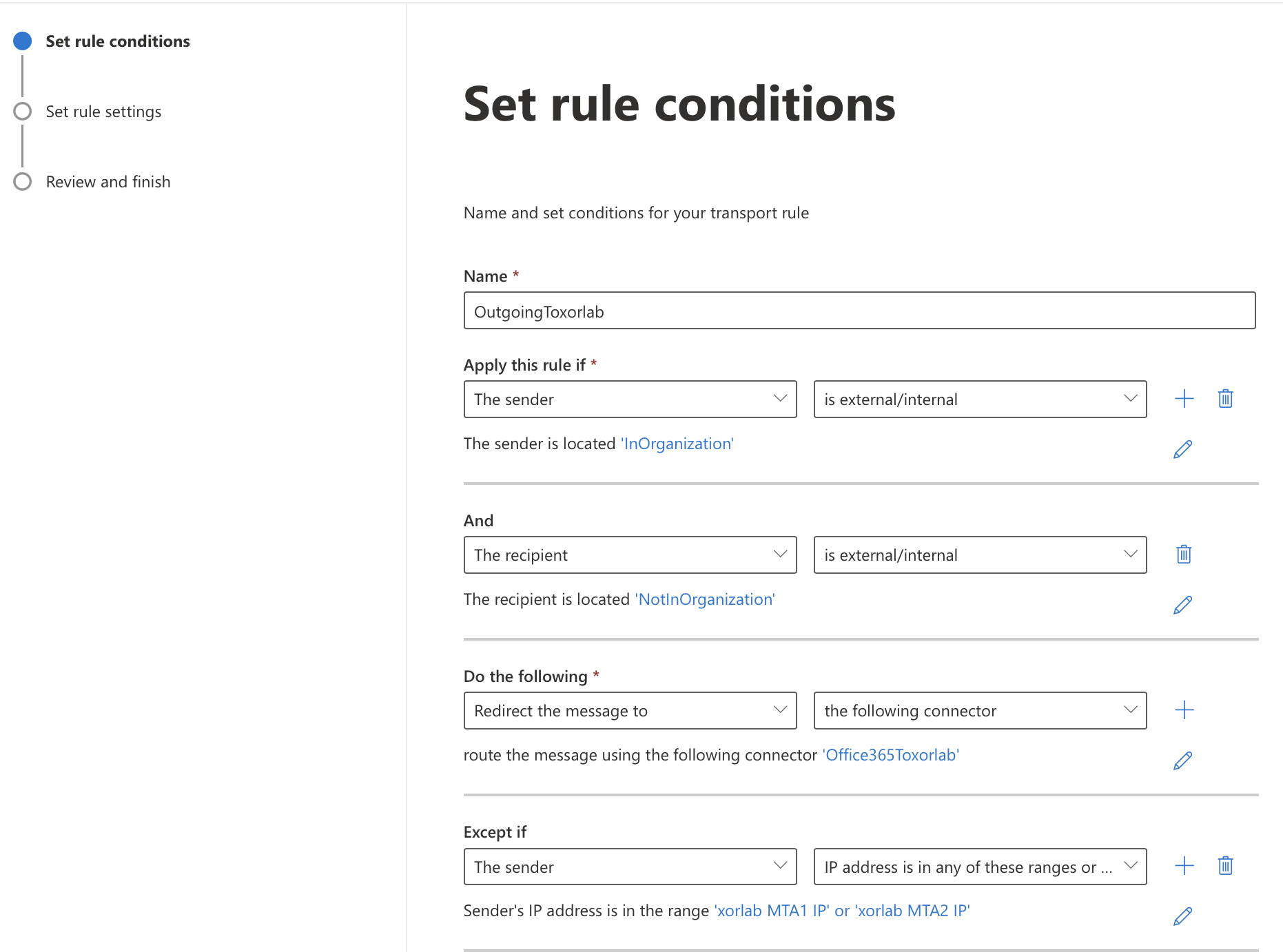

  7. To add another rule, repeat steps #2-6—this time, for outgoing emails: name it OutgoingToxorlab, set the sender to be from inside the organization and the recipient from outside the organization. See the screenshot below: Outgoing rule Configuring a new outgoing rule
IP Address ExclusionMake sure that you have configured the correct MTA IPs in the exception of the Mail flow rules. Otherwise emails will loop between ActiveGuard and Microsoft 365.

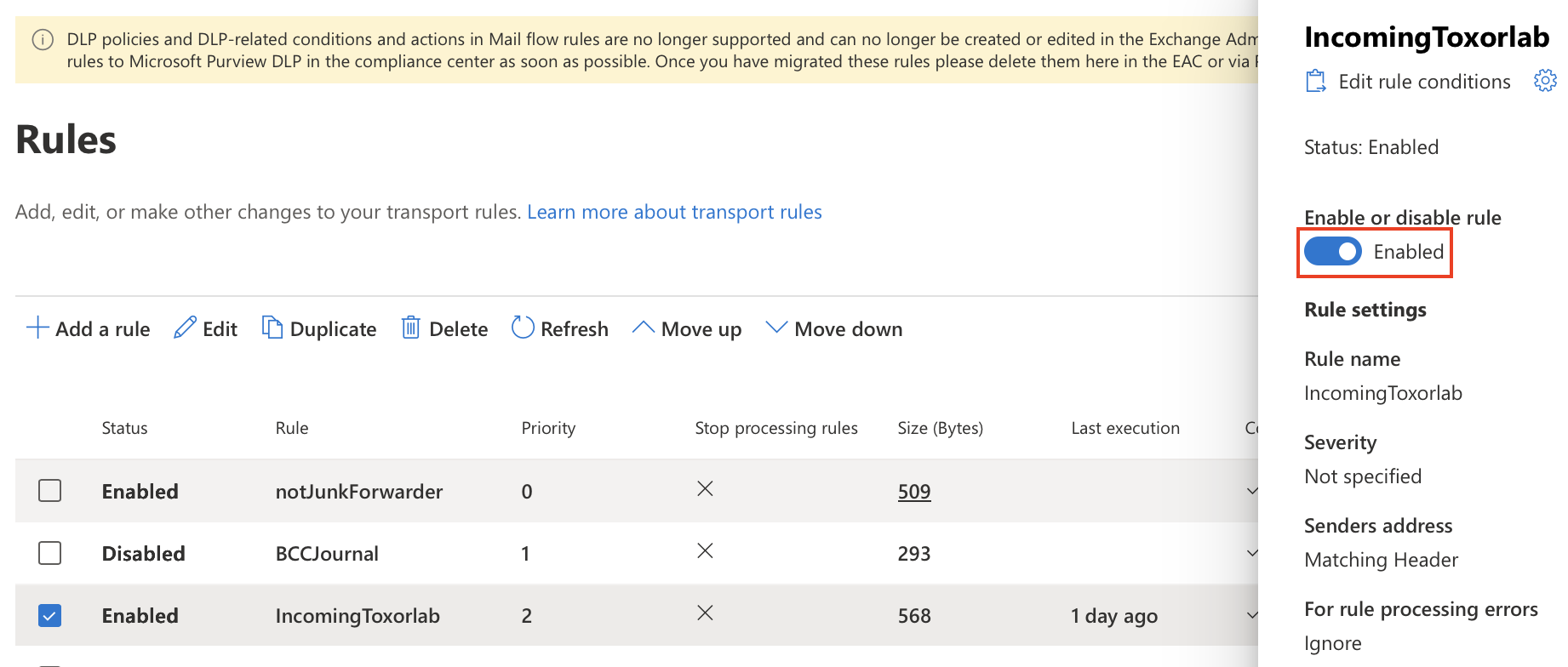

  1. Your new rules are disabled by default so you have to enable them on the main Rules page: just click the word Disabled next to your rule name and in the summary pane for your rule, click the Enable or disable rule switch to make it Enabled. Enabling a rule Enabling a new rule
  2. Test your rule by sending some incoming and outgoing emails.

​
Adding xorlab to your SPF record (optional)

Adding the xorlab MTAs to your SPF record will ensure that outgoing emails (emails sent from your organization to a third party) are accepted by M365 as it will list the xorlab MTAs as allowed senders for your email domain according to the Sender Policy Framework (SPF). There are several SPF mechanisms that allow adding xorlab to your SPF record. We recommend the a mechanism. Assuming your email domain is customer.tld and your customer ID for your xorlab instances is xyz, you should add a:mx.xyz.activeguard.cloud to your customer.tld TXT record so that your record could look like the following example:
After changing your SPF record, please always make sure that it is still valid—for example, by checking DMARCanalyzer’s SPF checker. Even if your SPF syntax is valid, any change might lift you over the limit of 10 DNS lookups.

​
Bypassing spam filtering (optional)

Microsoft 365 has its own measures for handling spam messages. Unfortunately, they can conflict with xorlab and treat some mails coming back from it as false positives. And although it’s not possible to completely turn off all spam filtering, most of it can be bypassed with a special mail flow rule.
  1. On the Home screen of the Exchange Admin Center, click Mail flow in the left pane and in the expanded list of items click Rules: Mail flow rules Selecting mail flow rules
  2. On the Rules screen that appears, click Add a rule and select Create a new rule from the drop-down list: Bypass spam filtering Creating a new rule

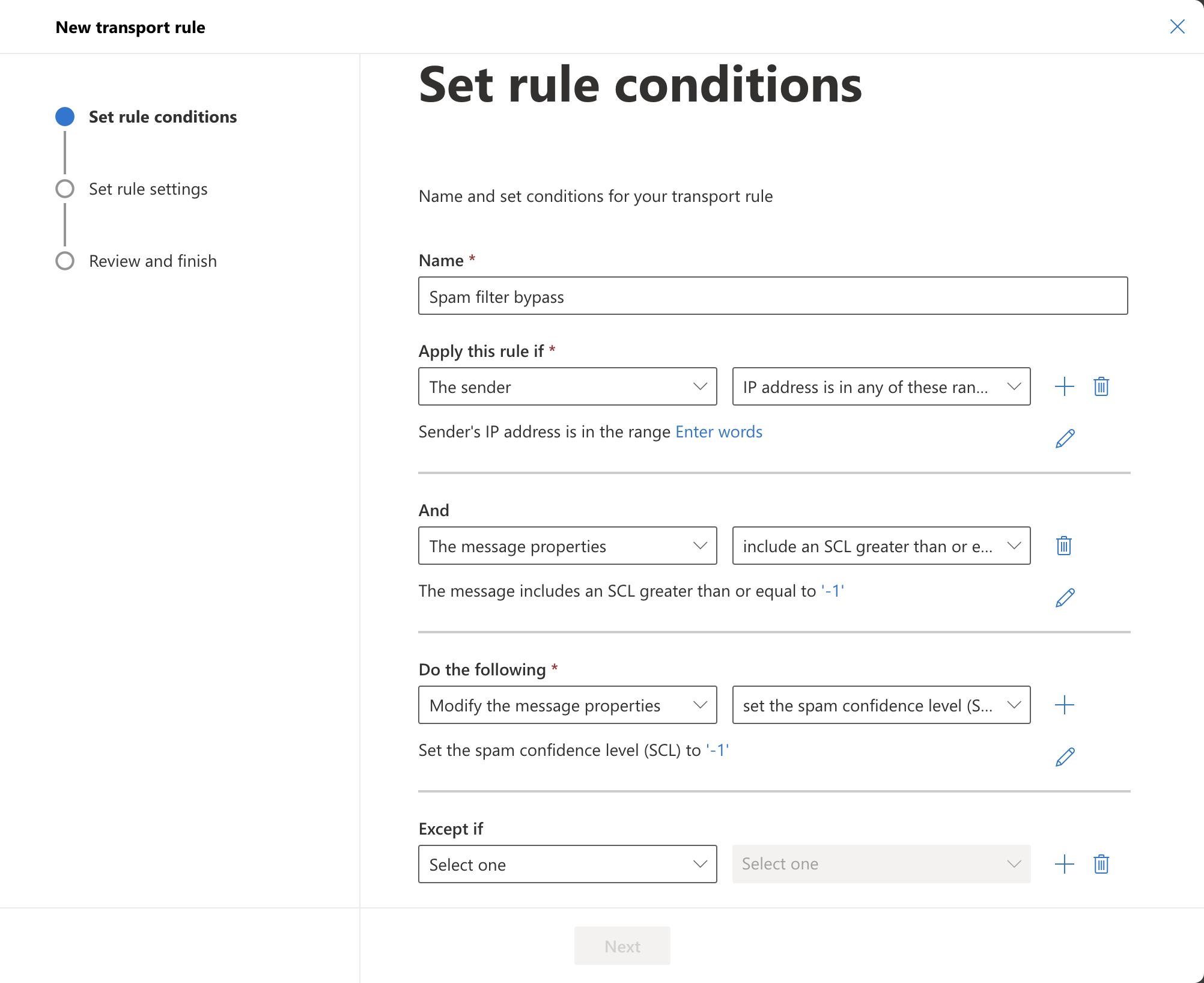

  3. A new pane opens with input fields for creating a new rule:
    1. Enter a name for the rule, e.g., Spam filter bypass in the field under Name.
    2. Click the drop-down list under Apply this rule if, select The sender, then IP address is in any of these ranges or exactly matches, and in the resulting specify IP address ranges box add the IPs of the xorlab MTAs by clicking Add after each address. When all IP addresses are added, click Save, then click the plus icon next to the input field of the first condition to add another condition.
    3. Under And, select The message properties, then include an SCL greater than or equal to. On the specify SCL pane, select Bypass spam filtering from the drop-down list. Click Save.
    4. Select Modify the message properties under Do the following, and set the spam confidence level (SCL) in the list to the right. When the specify SCL pane is displayed again, select Bypass spam filtering from the drop-down list. Click Save, and your rule should look like the one on the screenshot below: Bypass spam filtering actions Bypass spam filtering actions
  4. Leave the settings on the next page in their defaults, click Next, review the settings, click Finish and then Done.
  5. Enable the rule (see step #7 in the Mail flow rule section).

​
xorlab anti-spam whitelisting (optional)

Sometimes the M365 anti-spam mechanisms can reject messages delivered from xorlab. To avoid this, it’s good to add xorlab MTA IPs to the M365 anti-spam whitelist.

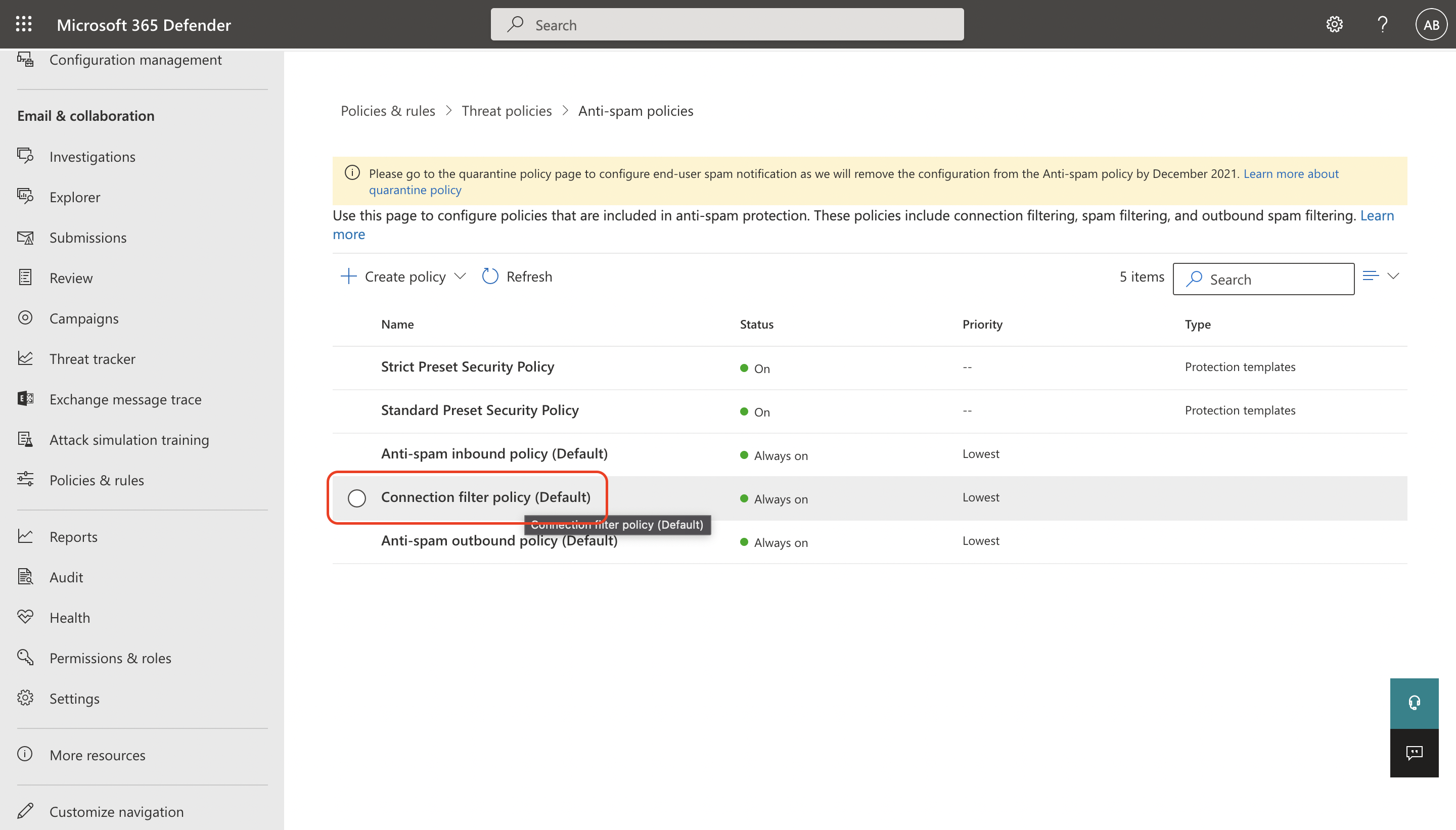

  1. Go to the Anti-spam policies screen of Microsoft 365 Defender and select Connection filter policy (Default): Anti-spam policies Anti-spam Policies

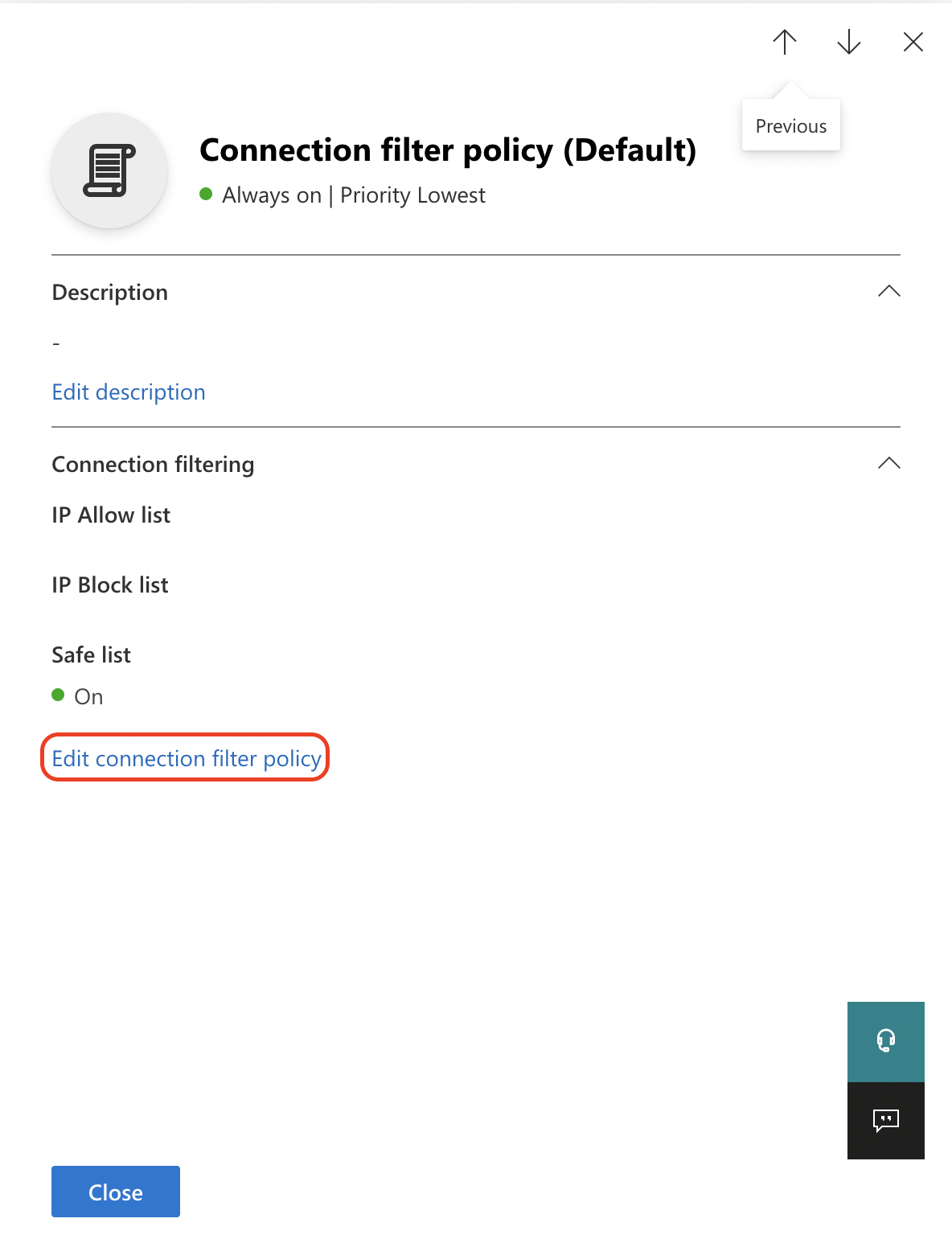

  2. On the Connection filter policy (Default) pane that appears, click Edit connection filter policy: Connection filter policy Editing the connection filter policy

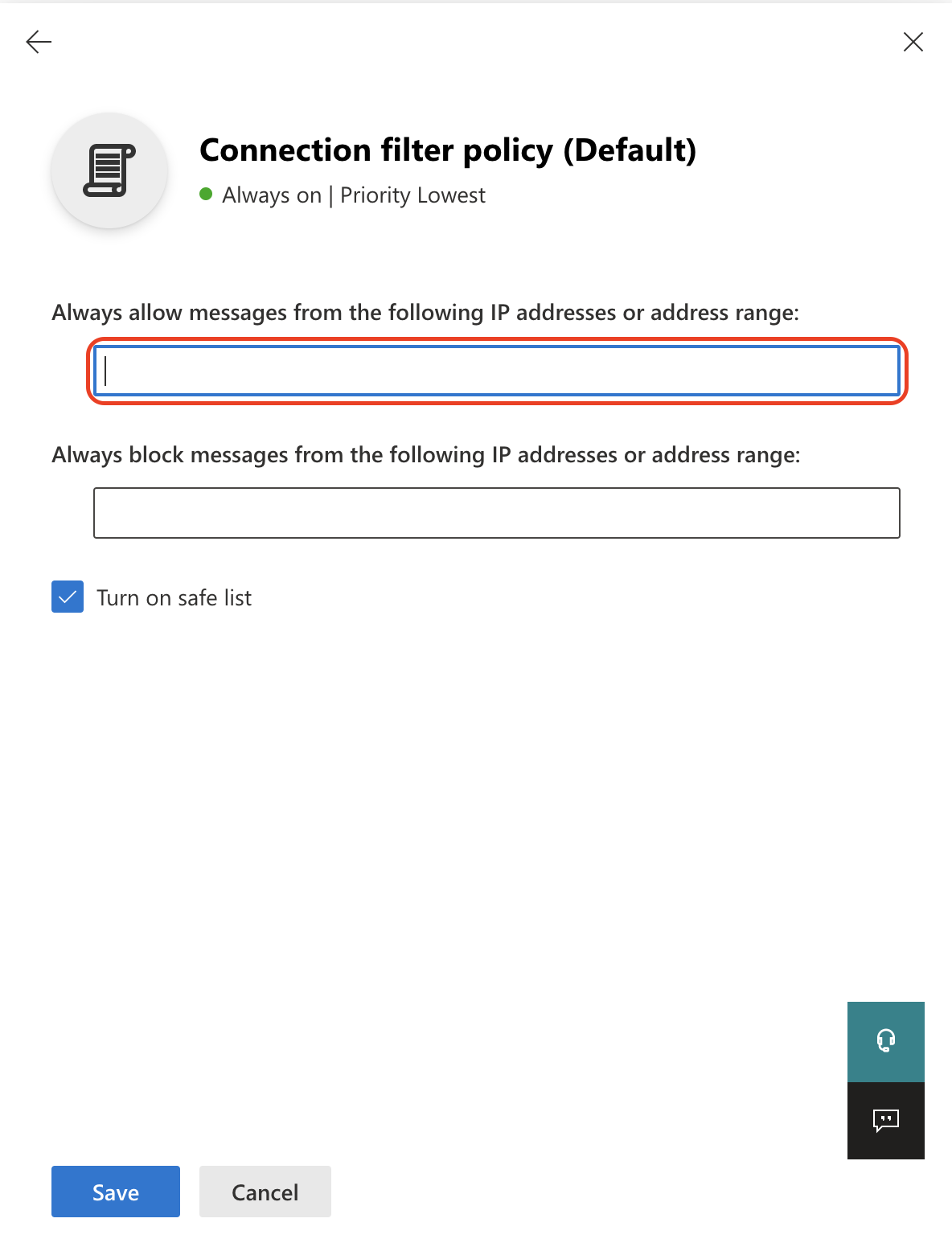

  3. The pane now displays two input fields. In the first field under Always allow messages from the following IP addresses or address range: enter xorlab MTA IPs and click Save: Allowed IPS for connection cilter Allowed IPs for connection filter
  4. Check if the addresses are correct under IP Allow list and click Close.

​
Resources

There are many mechanisms used in M365 that can affect the mail flow from xorlab and they also depend on the M365 subscription you have. Please refer to the following Microsoft documentation to experiment with the settings of Microsoft 365 Defender and Exchange security:
  1. Microsoft Defender for Microsoft 365 security documentation
  2. Use mail flow rules to set the spam confidence level (SCL) in messages
